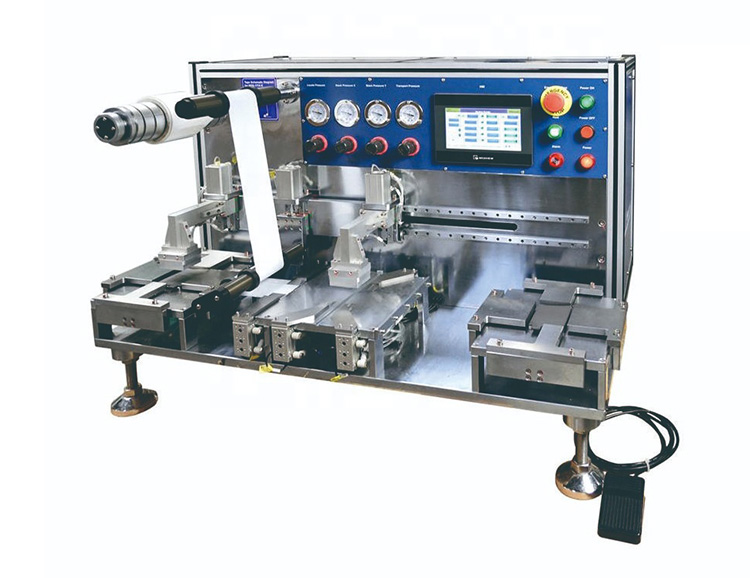

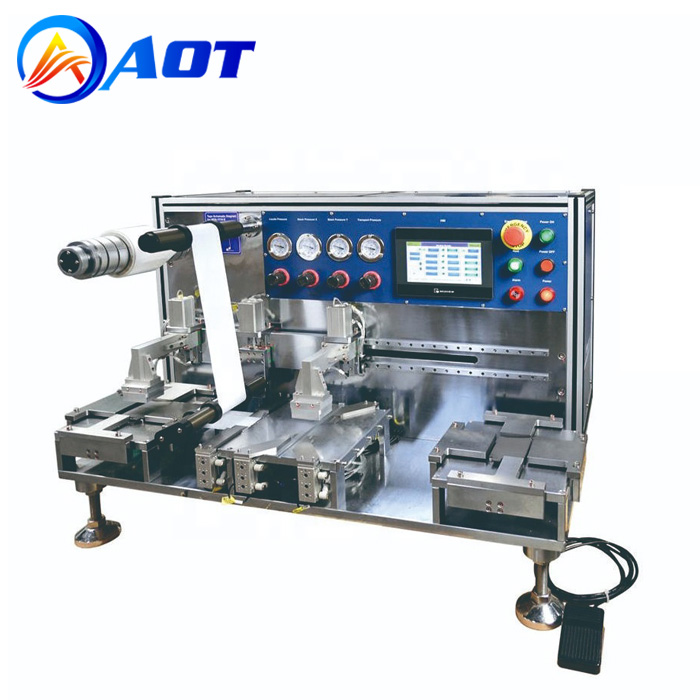

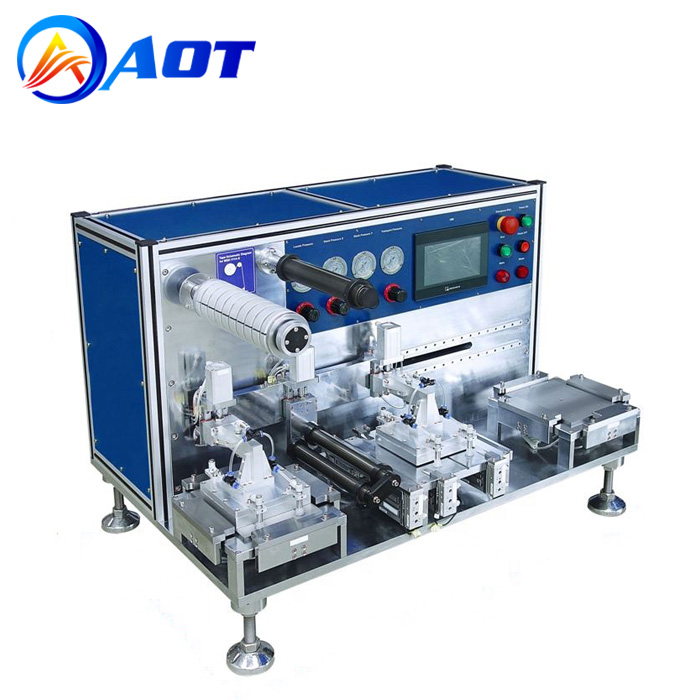

Semi-Automatic Battery Electrode Layer by Layer Stacking Machine for Pouch Cell

Model: AOT-SASM-200C
Stackable Size：200mm*150mm
Stackable Layers: Max 350 Layers
Warranty: 2 Years
Product description: AOT-SASM-200C is a high-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise battery electrode stacking.
INQUIRY

Semi-Automatic Battery Electrode Layer by Layer Stacking Machine for Pouch Cell

Description

AOT-SASM-200C is a high-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the seperator film in between.

Product Introduction

It is mainly used for the assembly of Z-shaped laminations of lithium battery positive, negative electrode and diaphragm.

The device realizes manual loading, subsequent pole piece position correction and lamination process by fully automatic, and has the characteristics of high lamination efficiency and high stacking precision. The device can be designed to stack up to 200*200mm batteries. Different sizes can be realized by adjusting fixtures, which is very suitable for the development and sample preparation of laminated lithium-ion batteries.

The device adopts a single cantilever structure design, and the coil isolation membrane automatically controls the constant tension, and the motor drives the diaphragm to move left and right to realize the zigzag lamination.

Specification

Model	Semi-Automatic Battery Stacking Machine AOT-SASM-200C
Working Voltage	AC220V 50/60Hz
Power	1KW
Stackable Size	200x150mm, it is Customized
Stackable Layers	Up to 350 layers, can be customized
Stacking Speed	Up to 5 layers/min
Max. Electrode Thickness	Piled up thickness < 50 mm, customized
Aligning Accuracy	±0.5 mm for stacked electrodes
Acceptable Separator Roll Size	I.D>3'' (76mm) O.D<9.8'' (200mm)
Stacking Fixture	If you need different size electrode stacking, please inform us before order. We will make for your at extra cost. Allowable customization size: Max. 250mm x 200mm; Min. 80 mm x 50 mm
Vacuum Pump	An Oilless Vacuum pump is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator.
Suggested Air Pressure	0.5 - 0.8 MPa (Air compressor is not included in the standard package.) Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
Product Dimensions	1000 mm L x 780 mm W x 870 mm H
Weight	350 kg
Compliance	CE Certified
Warranty	One Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty
Application Notes	Note: please confirm electrode sheet size before order ( each mold only fit with one size electrode )
