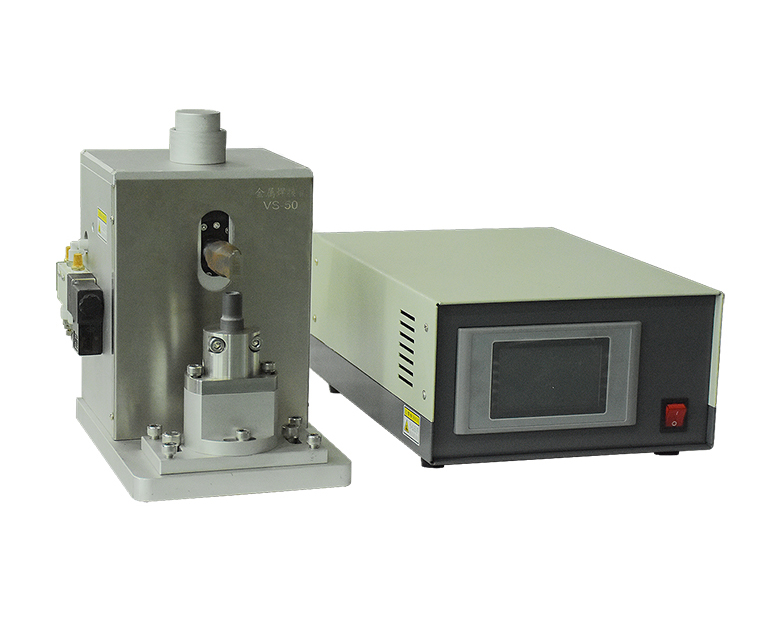

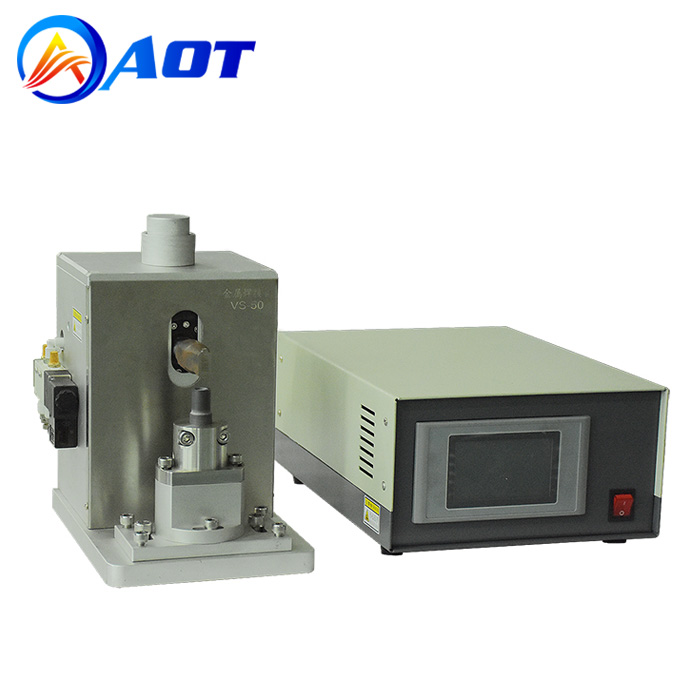

Ultrasonic Spot Metal Welding Machine for Aluminum Tab and Cap Welding

Model: AOT-VS-50A
Power: 800W
Applicaton: Al tab and cap welding
Frequency: 50KHz
Product description: Ultrasonic Spot Welding Machine is an ultrasonic metal welder use for cylinder cell Aluminum tab and Cap welding. Model: AOT-VS-50A
INQUIRY

Ultrasonic Spot Metal Welder Machine for Cylindrical Battery Aluminum Tab and Cap Welding

1 Ultrasonic Spot Welding Machine is an ultrasonic metal welder use for cylinder cell Aluminum tab and Cap welding.

2 Ultrasonic welding machine is with Automatic frequency tracking function, you don’t need to setting frequency always, simple operation.

3 Advantages with laser welding :

3.1 Laser welding need to weld after electrolyte filling, need to wipe the tab. AOT-VS-50A welding cap before electrolyte filled, more simple.

3.2 Laser welding is about 2-3% NG because of burning through tab, this AOT-VS-50A spot welder close to 0%.

3.3 Ultrasonic welding can weld 2-3layers Tab to Cap

3.4 High efficiency, Low cost, Small volume, simple operation

Model	AOT-VS-50A
Source voltage	AC220V, 50HZ, can be customized
Power	800W
Warranty	One Year limited warranty with lifetime support
Type	Ultrasonic spot welding machine
Frequency	50KHZ
Welding time	0.05-9.99s
Air supply	0.2-0.8MPa

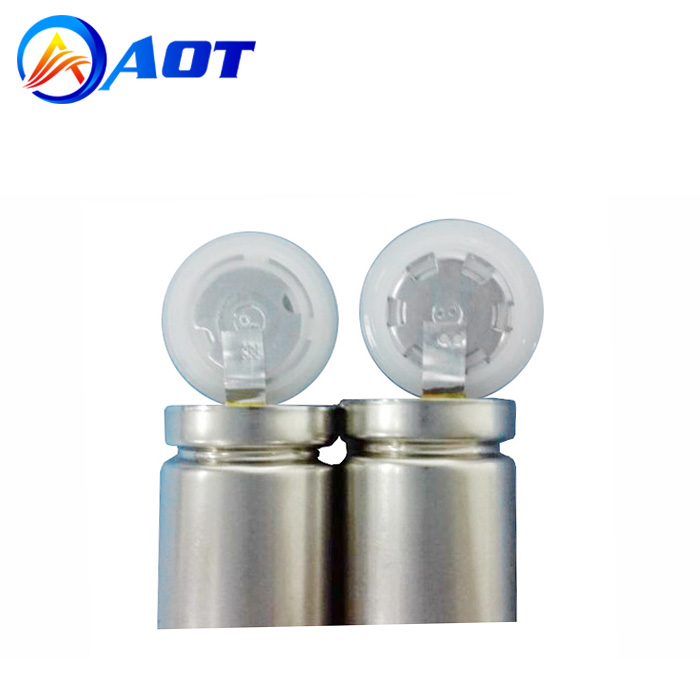

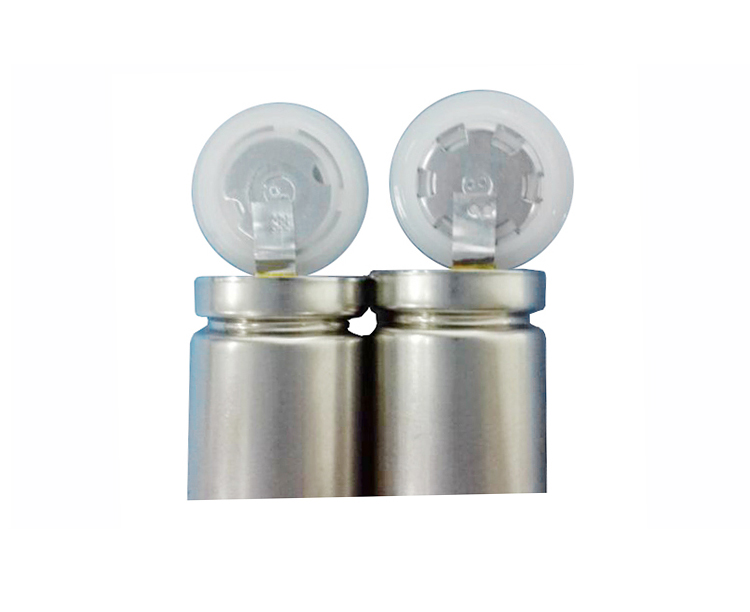

Welding effect	Single layer or multi-layer Aluminum tab andAl Cap welding , belt melt, welding firmly
Welding ability	1 Materials : Al Tab and cylinder cell cap (18650, 26650 and so on) 2 Al tab thickness : 0.08-0.15mm 3 Welding mode : according to your requirements 4 Welding area : can be customized

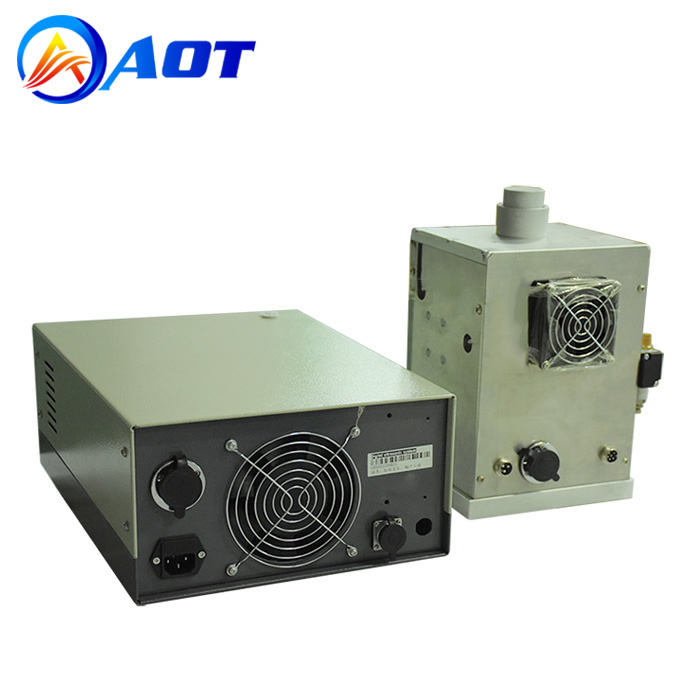

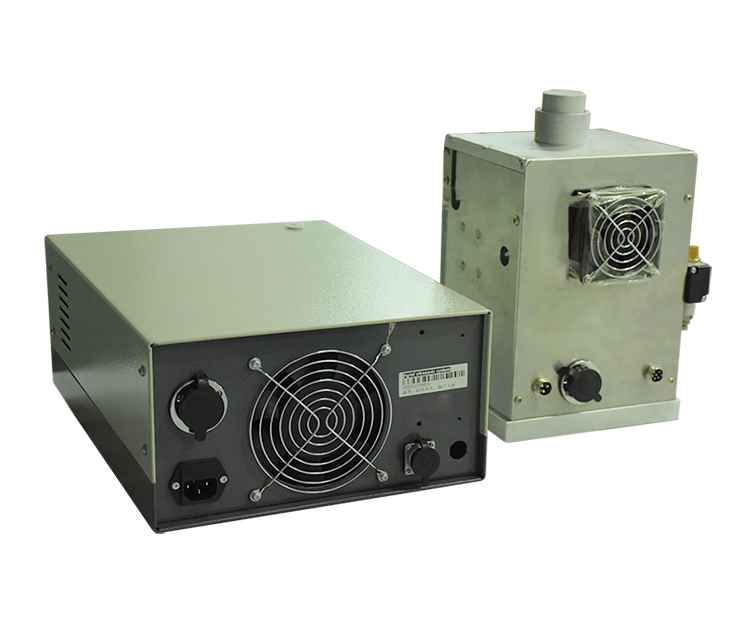

Dimension (LWH)	Power box : 400170300mm Welding machine : 300200270mm
