Pouch Cell Battery Vacuum Sealing Machine

Pouch Cell Battery Vacuum Sealing Machine

Product Name:Vacuum Sealing Machine
Sealing length:Max.100mm
Model:Pouch Cell Battery Vacuum Sealing Machine
Origin:China
Product description: It can achieve top sealing, inert gas pre cleaning, vacuum standing, vacuum pre sealing, and vacuum secondary sealing of soft pack batteries.
INQUIRY

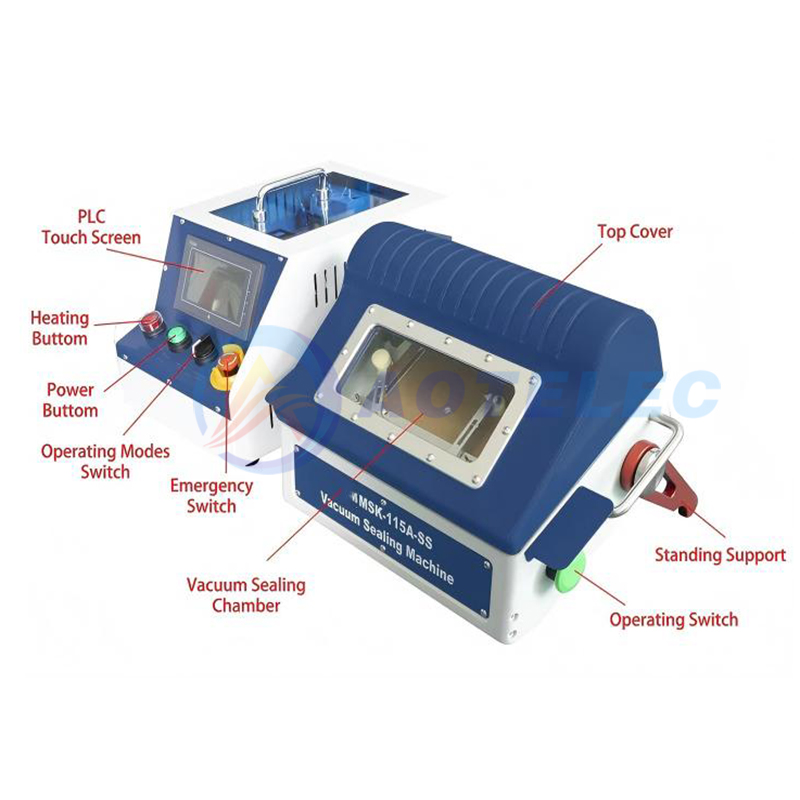

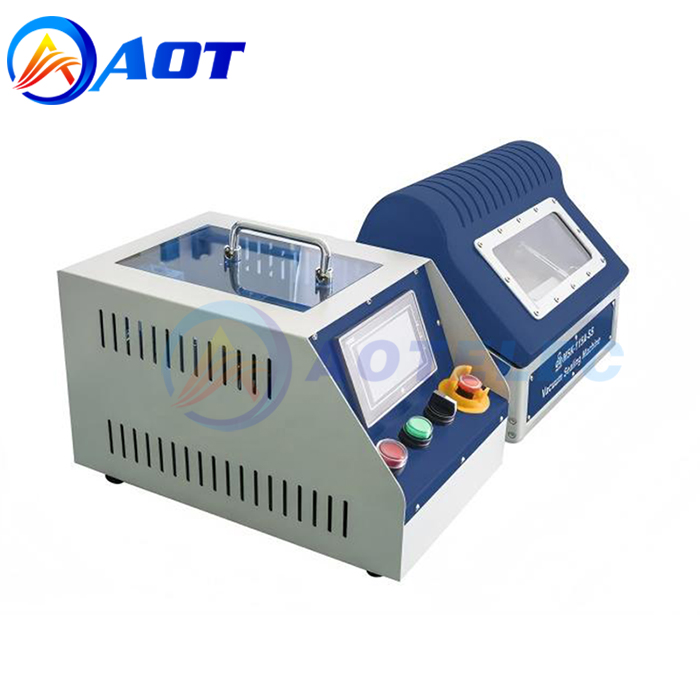

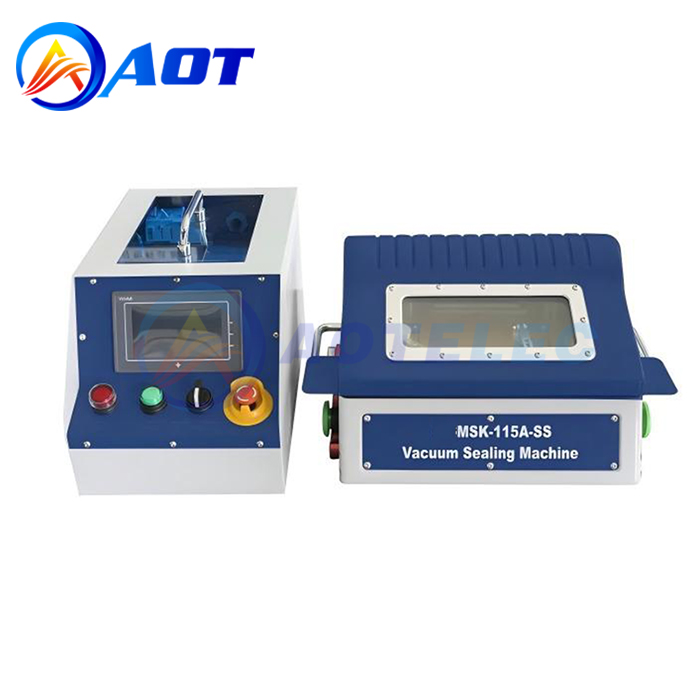

AOT-MSK-115A-SS is a miniature multifunctional vacuum sealing machine with a transition chamber inner diameter ≥ 320mm, used for packaging Max.L100 * W100 * H12mm soft packs and solid-state batteries (Li Ion, Na Ion, Zn Ion). The upper and lower head temperatures are Max.250 ℃, with a temperature control accuracy of ± 2 ℃, and a sealing width of 4mm (customizable). It can achieve top sealing, inert gas pre cleaning, vacuum standing, vacuum pre sealing, and vacuum secondary sealing of soft pack batteries.

Technical Parameter

Product Name	Mini Vacuum Sealer
Power supply	Single-phase AC220V ± 10%, frequency 50Hz (customizable AC110V/60Hz),power 800W
Gas source	0.65-0.8MPa compressed air or inert gas
Usage environment	Can be used in nitrogen and argon glove boxes or drying rooms
Head temperature	Max. 250 ℃ for upper and lower heads
Temperature control accuracy	± 2 ℃
Mold accuracy	parallelism better than 0.02mm
Battery size	Max.L100 * W100 * H12mm
Sealing width	Standard 4mm soft seal (optional/hard seal) customizable
Sealing length	Max.100mm
Sealing pressure	Adjust the pressure through air pressure (0.65MPa, Max.319N, 0.8MPa, Max.393N)
Heat sealing time	Adjustable from 0 to 90 seconds, it is recommended to set it to 5 to 6 seconds
Top side seal	Can keep the upper cover open, achieving vacuum free sealing
Inert gas cleaning	Cleaning with argon gas under slightly positive pressure before vacuum standing can effectively remove oxygen content and improve electrode solid solid and solid-liquid interface infiltration
Cleaning cycle times	Adjustable from 0 to 90 times
Cleaning pressure	Adjustable from 0 to 0.8KPa
Vacuum standing and sealing	Vacuum degree: maximum not less than -95KPa Vacuum idle time: (adjustable from 0 to 900S) Vacuum pre sealing time: (adjustable from 0 to 90 seconds)
Gas consumption	Approximately 0.04L of compressed gas per cylinder per seal, with an internal displacement of approximately 6L

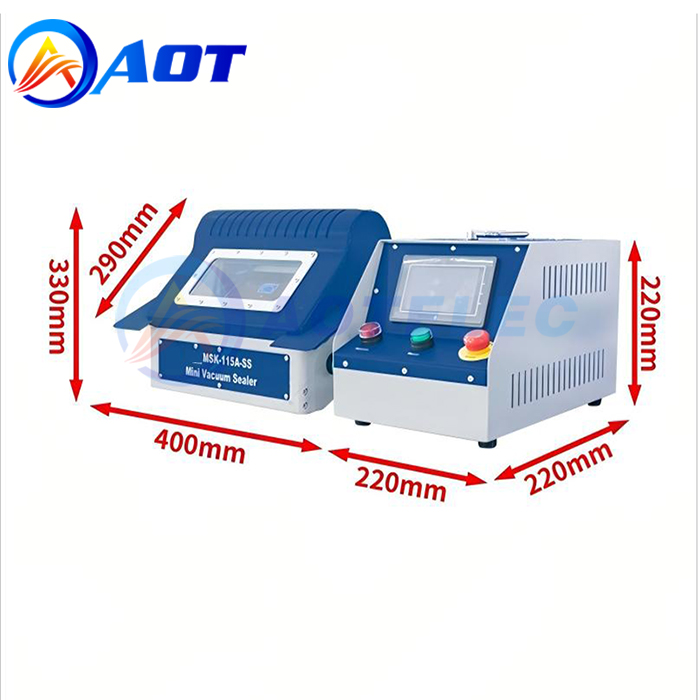

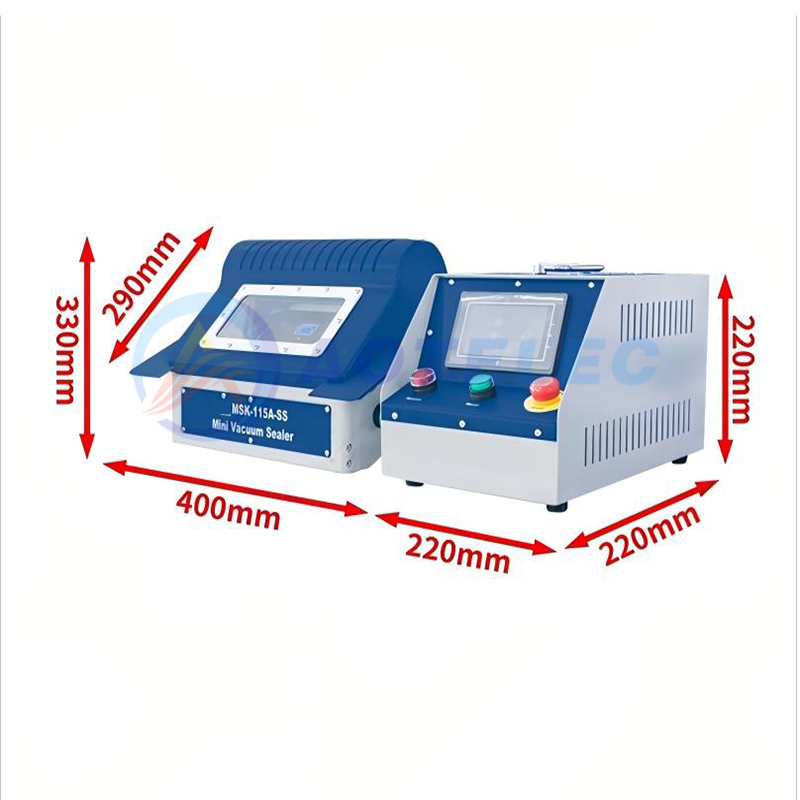

Equipment size	L400 * W330 * H290mm (290mm is the maximum height size for opening the lid, which can be accessed through a glove box with a transition chamber inner diameter ≥ 320mm)
Weight	The main unit weighs about 17kg, and the electrical control box weighs about 9kg
