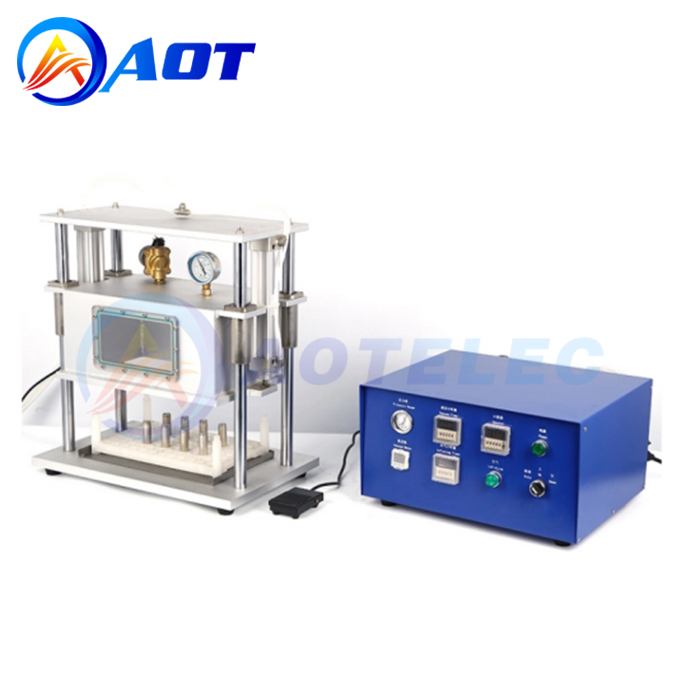

Vacuum Standing Box Electrolyte Diffusion and Degassing Chamber for Battery Research

Vacuum Standing Box Electrolyte Diffusion and Degassing Chamber for Battery Research

  • Product Name: Vacuum Standing Box Electrolyte Diffusion and Degassing Chamber
  • Max. Power:100W
  • Compressed Air:0.5-0.8Mpa
  • Power Supply:110-240 V,
  • Product description: AOT-VSB-300 electrolyte diffusion & degassing chamber is specifically designed for professional Li-ion Battery Research.
  • INQUIRY

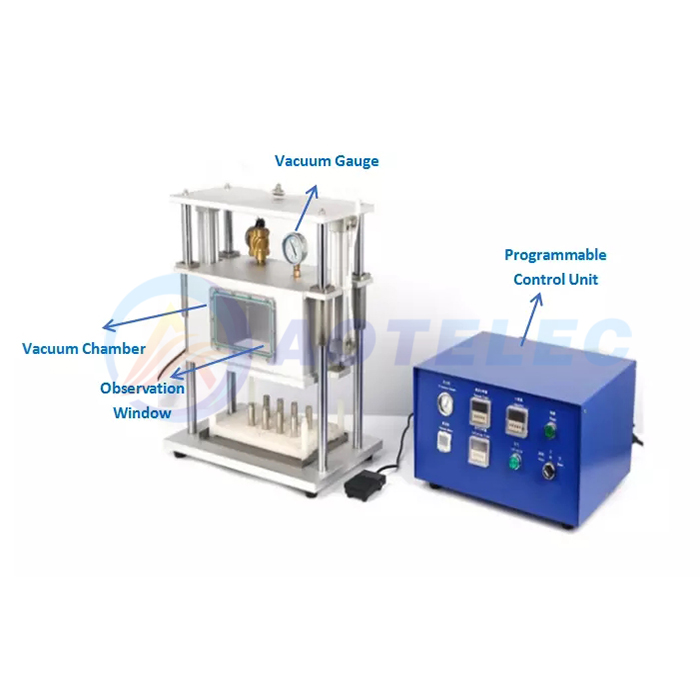

AOT-VSB-300 electrolyte diffusion & degassing chamber is specifically designed for professional Li-ion Battery Research. It is mainly used for removing air from the electrolyteafter it's been injected into the polymer Li-ion cell or after the formation for final sealing under a vacuumed condition. It is easy to operate and suitable for all types of batteries(especially soft bag battery and cylinder battery). Unique periods of vacuum control system allows electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.



Inner Chamber Size

L325mm*W220mm*H170mm

Product Dimensions

Vacuum Box: 500mm(L) x 350mm(W) x 630mm(H)

Control Unit: 460mm(L) x 220mm(W) x 340mm(H)

Power Supply

110-240 V, Single Phase 50/60Hz

Max. Power

100W

Compressed Air

0.5-0.8Mpa

Chamber Body

12mm thick Aluminum case with observation window

Gas Filling Rate

<= 5 psi

Air Pressure Range

0 - 1 Mpa (0 - 99 psi) Adjustable

Vacuum Level

Vacuum condition remains stable, vacuum degree and vacuum circulation times can be set independently

Vacuum mode (once or twice) can be selected

Easy program setting for specific vacuum condition

-0.9 - 0 kPa adjustable

Air Inflation Time

0 - 99.99 sec

Vacuum Condition Hold Time

0 - 99.99 sec

Operation Temperature

-20 to 40 ℃

Warranty

One Year limited warranty with lifetime support

Net Weight

50KG

Application Notes

1. KF25 Feedthrough is included to allow operation inside TMAX glove box.
2. Such a Feedthrough ensures air-tightness of glove box.
