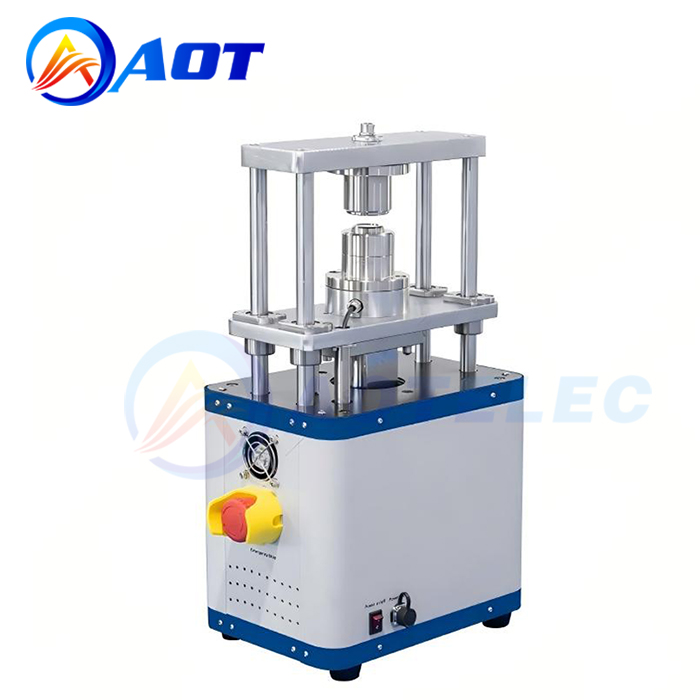

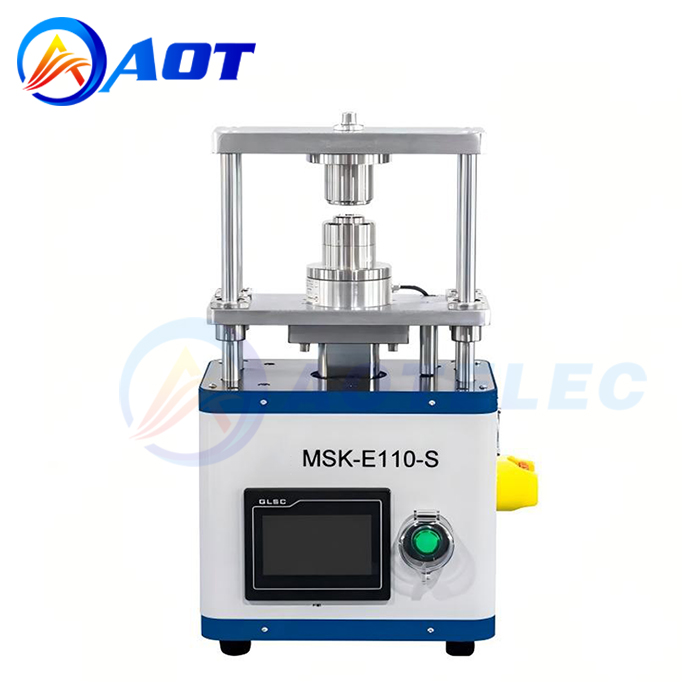

AOT-MSK-E110-S Coin Cell Battery Crimping Machine

AOT-MSK-E110-S is a pressure controlled electric crimping machine designed specifically for coin cell batteries. It integrates automation, precision, and multifunctionality, and is suitable for packaging and disassembling coin cell batteries in battery production, research and development, and testing scenarios. With stable performance and flexible adaptability, it meets the processing needs of coin cell batteries of different specifications.

Key performance parameters

Adapt to battery specifications

Diameter range: φ 5.0- φ 35mm

Maximum height: 10mm

Standard compatible models: CR20 series (such as CR2016, CR2025, CR2032), other models (such as CR1620, CR2450, etc.) require matching molds; We can also provide CR16, CR24, CR30 series or non-standard customized molds with diameters of 13-35mm.

Crimping and sealing performance

Sealing stroke: 15mm

Crimp pressure: Intermittent adjustable. The recommended packaging pressure for CR20 series coin cell batteries is 500-700KG, with a maximum pressure of 1000KG. It is equipped with a pressure sensor to achieve closed-loop control of sealing pressure, ensuring precise and stable pressure.

Equipment speed: about 2.5 per minute (reference value, actual speed may vary due to differences in sealing time caused by different battery sizes).

Mold lifespan: The maximum sealing cycle of a single mold is 5000 times, and precise mold design balances sealing quality and service life.

Core functional features

Accurate and controllable pressure: equipped with pressure sensors and adopting closed-loop control technology, it can monitor and accurately adjust the sealing pressure in real time, avoiding battery sealing failure or shell damage caused by improper pressure, and ensuring product consistency.

Safe and lossless drive:By driving the mold with a motor for mechanical pressurization, there is no need for hydraulic oil or compressed gas, completely eliminating the risks of oil leakage and gas consumption, reducing equipment maintenance costs and safety hazards during use.

Convenient digital operation: equipped with a touch screen, supporting digital setting of sealing time, intuitive and simple operation, no need for complex manual debugging, improving work efficiency.

Compact and adaptable to special scenarios: The device has a compact structure, light weight, and can lie flat through a glove box transition chamber, meeting the needs of special experimental environments such as water and oxygen free (such as battery materialresearch and development), and expanding application scenarios.

Multi purpose and flexible adaptation: By changing molds of different specifications, it is possible to package coin cell batteries of different diameters and heights; At the same time, dismantling molds can be selected to completely separate the positive and negative shell after the battery is sealed, which facilitates sampling, research and analysis of the internal materials of the battery, and meets the needs of production and research and development.

Applicable scenarios

Battery production process: Automated packaging of standard series coin cell batteries such as CR20 is completed in bulk to ensure production efficiency and sealing quality.

In the field of battery research and development, different specifications (including customized specifications) of coin cell batteries are packaged and disassembled in special environments such as glove boxes, supporting internal material analysis, performance testing, and other research and development experiments.

Quality testing scenario: Accurately control pressure and sealing parameters to provide standardized processing conditions for quality testing such as sealing and structural stability of coin cell batteries.
