The multi-faceted exploration of LLZTO powder in battery research

In the wave of solid-state battery research, LLZTO powder, with its unique properties, has become an important breakthrough point for researchers in exploring new energy storage technologies. It is not only the core raw material for high-performance solid-state electrolytes, but also demonstrates multiple values in battery system optimization and performance improvement, providing a new path to address many pain points of traditional batteries.

The adaptability of LLZTO powder in different battery systems

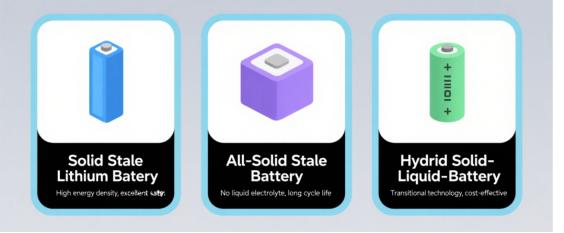

LLZTO powder is not limited to a single type of solid-state battery. Its characteristics enable it to be compatible with various battery systems, expanding the scope of research.

All-solid-state lithium-ion batteries: In these batteries, the ceramic electrolyte made by sintering LLZTO powder is the core component. It can effectively prevent the electron conduction between the positive and negative electrodes and ensure the smooth migration of lithium ions, significantly enhancing the safety of the battery.

Lithium metal batteries: Due to the good stability of LLZTO powder towards lithium metal, the electrolyte prepared with it can inhibit the growth of lithium dendrites, solving the problem of short cycle life of lithium metal batteries and providing the possibility for the development of high-capacity batteries.

Mixed solid-liquid batteries: Adding a small amount of LLZTO powder to the liquid electrolyte can improve the interface performance between the electrolyte and the electrode, reduce the amount of liquid electrolyte, and enhance safety while retaining the high ionic conductivity advantage of liquid batteries.

Performance Control and Research Techniques of LLZTO Powder

In the laboratory, by controlling the properties of LLZTO powder, we can further explore its application potential. This requires the acquisition of certain research skills.

Raw material purity control: When preparing LLZTO powder, the purity of the raw materials directly affects the final performance. If the raw materials contain impurities, they may block the lithium ion conduction channels and reduce the conductivity. Therefore, laboratories usually select raw materials with a purity of over 99.9% to ensure the high quality of the powder.

Coking process optimization: Different coking temperatures and times will result in differences in the crystallinity and particle size of the powder. Appropriately increasing the coking temperature (but not exceeding 1200°C) can increase the crystallinity and enhance the ion conduction ability; while shortening the coking time will result in finer particles, which is beneficial for the densification of the subsequent electrolyte.

Particle size screening: Different particle sizes of LLZTO powder have different application scenarios. Nanometer-sized powder is suitable for preparing flexible electrolytes by combining with polymers, while micrometer-sized powder is more suitable for direct sintering into ceramic sheets. In research, screening needs to be conducted according to specific requirements.

Common Misunderstandings in the Study of LLZTO Powder and Their Avoidance

During the research on LLZTO powder, improper handling of certain details may affect the accuracy of the experimental results, and these issues need to be avoided.

Ignoring moisture in raw materials: If the raw materials of LLZTO powder are not stored properly, they are prone to getting damp. After getting damp, the raw materials will generate gas during the calcination process, causing pores to appear in the powder. Therefore, before the experiment, the raw materials need to be dried. Usually, they should be dried at 100℃ for more than 2 hours.

Rapid temperature rise during sintering: When using LLZTO powder to sinter ceramic sheets, if the temperature rise is too fast, it will cause the ceramic sheet to crack due to the large temperature difference inside and outside. The correct approach is to use a stepwise temperature rise, maintaining a temperature increase of 200℃ for 1 hour each time, and slowly reaching the target temperature.

Simplifying interface testing: When evaluating the performance of LLZTO electrolyte, if the interface impedance test steps are simplified, it may lead to incorrect battery performance assessment. In the research, precise electrochemical impedance spectroscopy tests should be adopted to comprehensively analyze the interface state, so as to obtain reliable conclusions.

The research value and industrial prospects of LLZTO powder

The research on LLZTO powder not only holds academic value, but also presents a promising future outlook for the industry. With the maturity of its preparation process and the optimization of its performance, it may play a significant role in the following fields in the future:

New energy vehicle batteries: With high safety and high energy density, it provides a more reliable power source for electric vehicles;

Portable electronic devices: The miniaturized LLZTO-based solid-state batteries can extend the device's battery life and reduce the number of charging times;

Large-scale energy storage: In the grid energy storage system, its long cycle life and stability can reduce operating costs.
