2000W Ultrasonic Metal Spot Welding Machine for Pouch Cell

2000W Ultrasonic Metal Spot Welding Machine for Pouch Cell

  • Model: AOT-USW-2000W
  • Power: 2000W
  • Frequency: 20KHz
  • Warranty: 1 Year
  • Product description: This 2000W Ultrasonic Metal Spot Welding Machine is mainly for lab pouch cell tab welding, suitable for aluminum foil, copper foil and nickel foil spot welding.
  • INQUIRY

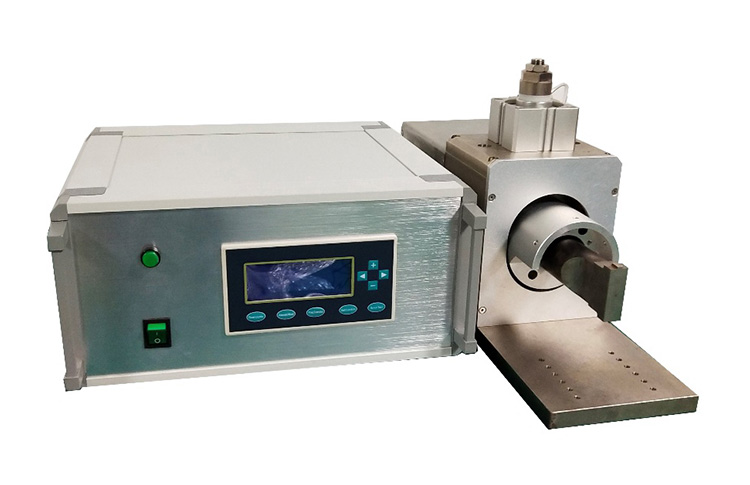

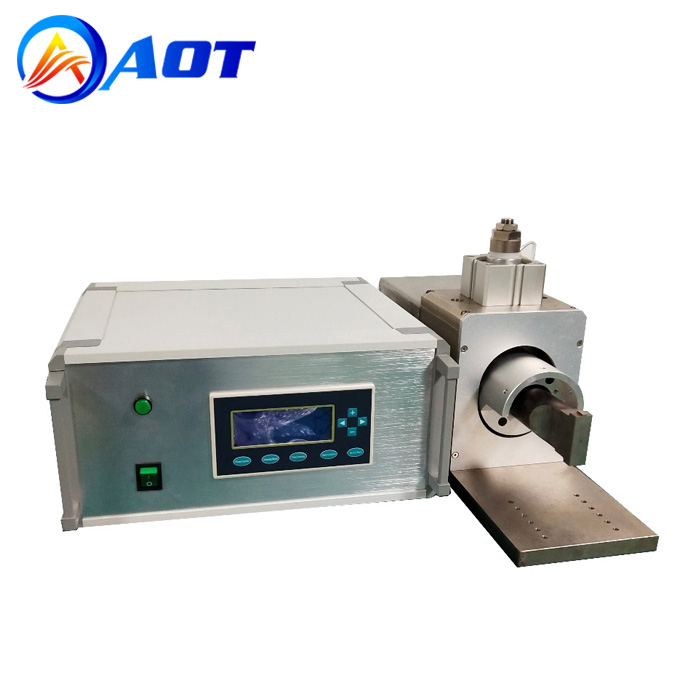

Ultrasonic Metal Spot Welding Machine AOT-USW-2000W



Welding machine features:

1. Generator: It adopts automatic tracking constant current technology with stable performance and intelligent control mode.

2. Machine head: mechanically precise and stable, equipped with integrated cooling system.

3. Transducer system: German Tektronix chip is adopted, and the power output is strong and stable.

4. Ultrasonic upper and lower welding head, using German steel raw materials, using superb processing technology, product durability, long life, smooth point.

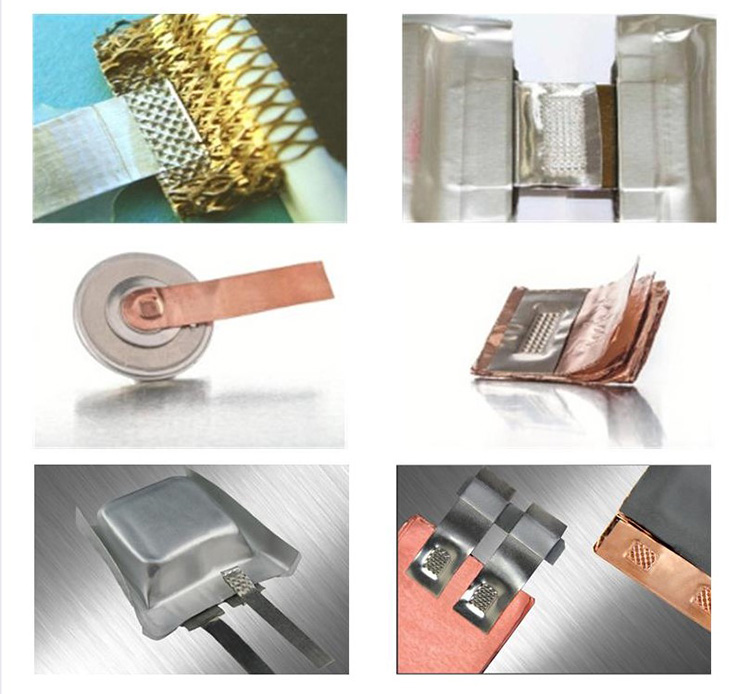

5. Welding materials: aluminum trip, Aluminum Foil, copper strip, copper foil, nickel foil



Specifications

Model

Ultrasonic Spot Welding Machine AOT-USW-2000W

Voltage

AC220V(+5%-10%),50/60Hz

Air Pressure

0.2-0.6Mpa

Max output power

2000W

Frequency

20KHz

Power regulating range

Automatic frequency tracking,power adjustable0~100%

Automatic frequency tracking accuracy

±5HZ

Power stability

≤ 5%

Remote terminal dynamic response time

≤10ms

Overcurrent protection current

10A

Overcurrent protection time

100ms

Overheat protection temperature

85℃

Working Temperature

+5℃~ +50℃

Dimension

Power box:420mm*380mm*200 mm

Welding machine:510mm*280mm*400mm

Weight

Power box:10kg, welding machine:45kg

Warranty

Welding head 6 month, machine is 1 year

2000W Ultrasonic Spot Welder for Pouch Cell
