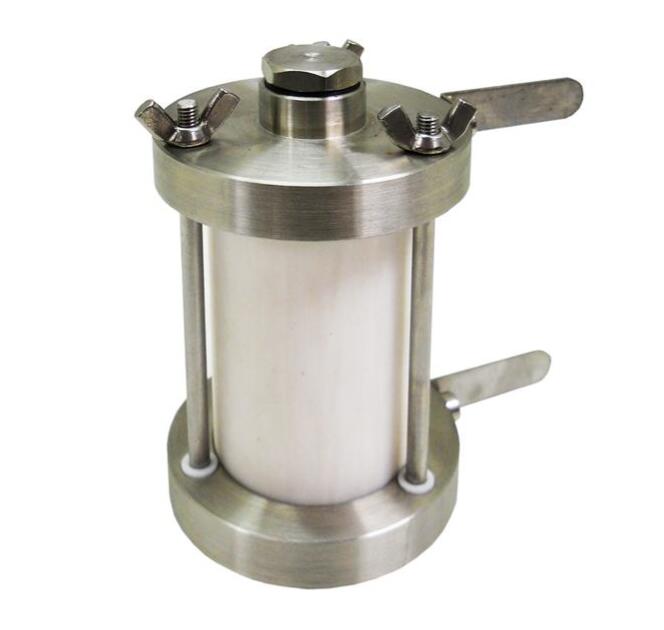

21700 Split Type Testing Cell for Lab Research

21700 Split Type Testing Cell for Lab Research

  • Model: AOT-STC-21700
  • Origin: China
  • Applicaton: Cylinder Cell Reseach
  • Material: Nylon/PTFE
  • Product description: 21700 Split Type Testing Cell
  • INQUIRY

21700 Split Type Testing Cell is designed for researching the materials of 21700 cell at easy. Its detachable design allows you to test the cycling behavior as well as structural changes of electrode easily and quickly.



Note: The default is Nylon body

Specifications

Dimensions (Dia x Height)

ID of PTFE Body: 21mm

OD of PTFE Body: 40mm

Height of PTFE Body: 70mm

Material

Caps: Full Stainless steel end caps

Body: Electrolyte corrosive-proof PTFE body can sustain with temperature up to 250ºC

O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings

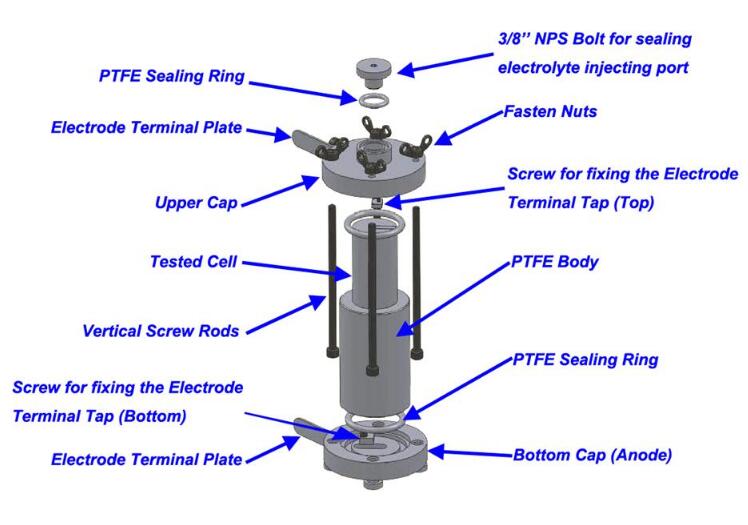

Design

Easy assembling by only four cap mounting screws

Easy to separate after test for cleaning

Space saving, compact design allows you put it into the glove box

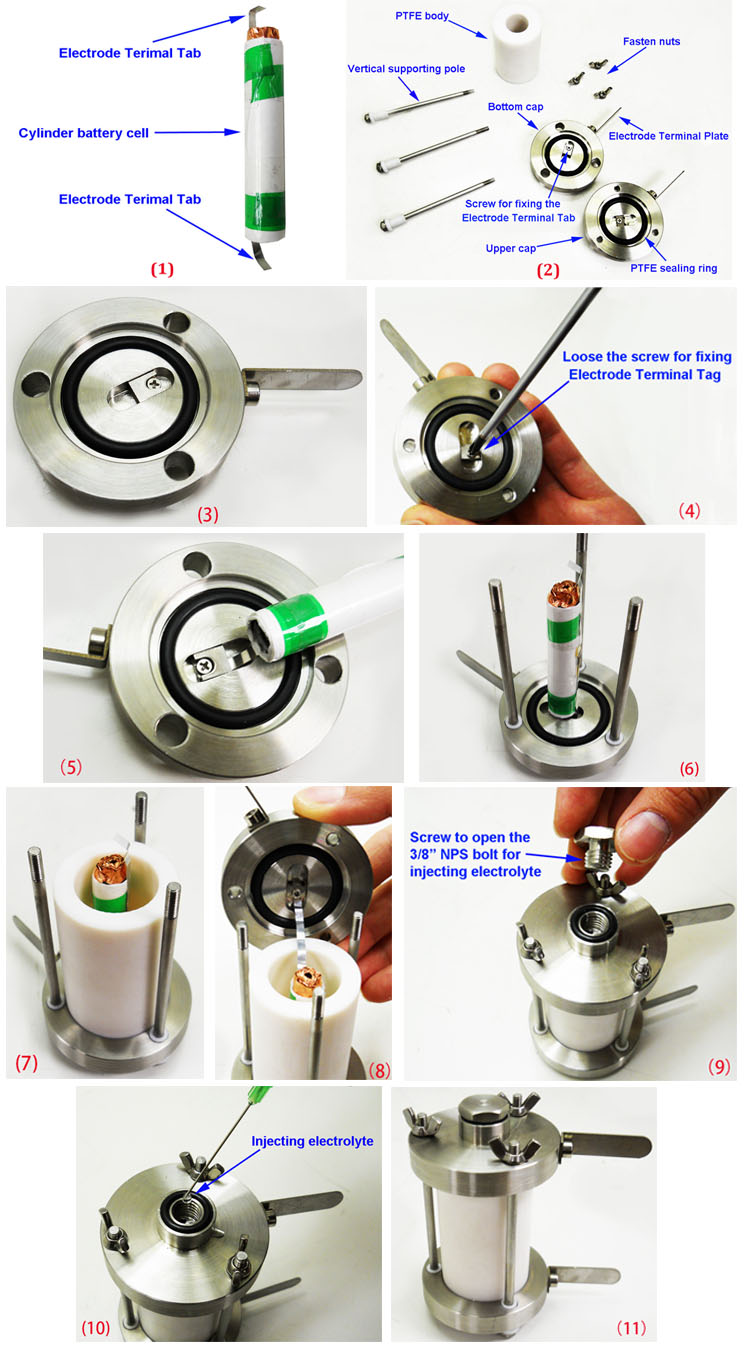

Click the image left for the detailed illustration of this cell
