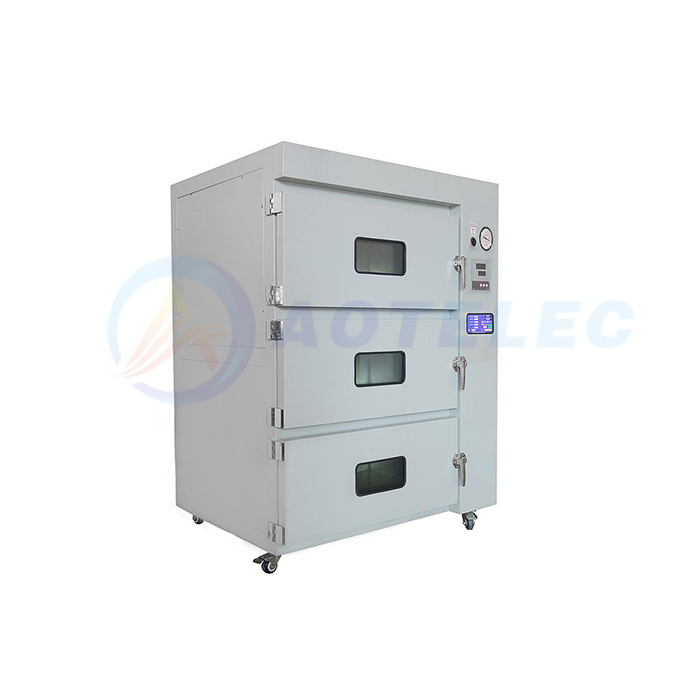

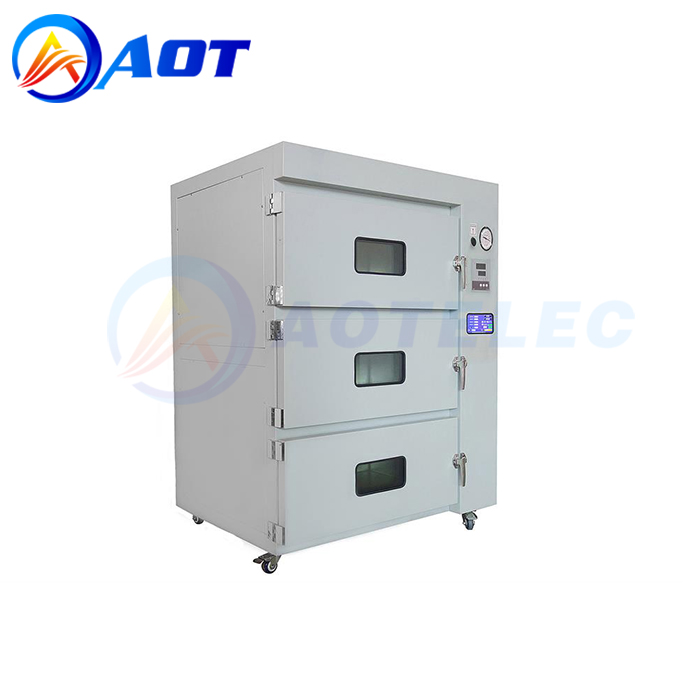

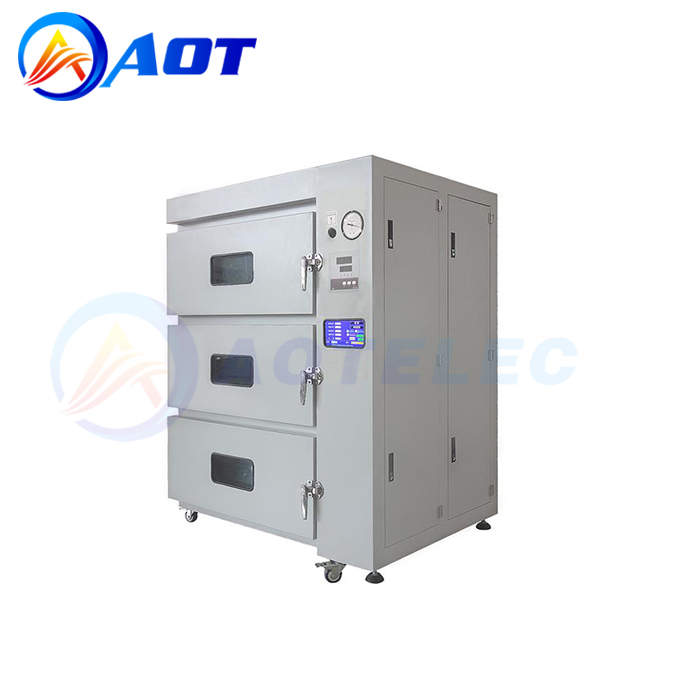

AOT-DZF-3120 is a large capacity (360L) floor-standing vacuum drying/degassing/baking oven.
Heating module with three shelves and UL/CSA/MET electrical components (>24V DC/AC) to ensure system performance and quality.
Main feature:
1. Three-layer independent shelf heating module improves efficiency for vacuum drying, degassing and baking applications;
2. PLC touch screen control can realize automatic circulation;
3. Measure the local temperature of each heating rack;
Specification:
Product Name |
Vacuum Drying Oven |
Working Voltage |
Three Phase AC 208VAC |
Power |
18KW |
Heating Rates |
RT-80°C, less than 20 minutes (unloaded) |
Heating Rates |
K type |
Working Temperature |
RT ~150°C |
Temperature Control |
PID precise temperature controls with built-in over-temperature protection Temperature uniformity: +/-5°C @ 100°C Temperature Stability: +/-1°C of the setpoint |
Main Structure |
Total capacity: 360 L Inner Chamber size: W800mm x D500mm x H300mm per level A good vacuum seal is achieved by silicone door gasket and positive latch door Three observation windows (12mm thick temper glass), one for each level High-quality glass wool insulation prevents heat loss and maintains a relatively low surface temp. < 40°C during the work Interior material: Stainless Steel 304 (3mm thick) Exterior material: Cold rolled steel plate (1.5mm thick) |
Vacuum Port |
KF-25 |
Gas Inlet |
Features 1/4" tube fitting for chamber purging with inert gas |
Product dimensions |
W1400mm*D1100mm*H1900mm |
Weight |
698kg |
