Auto Slurry Feeding Machine For Lithium Battery Coater

Auto Slurry Feeding Machine For Lithium Battery Coater

Product Name : Slurry Feeding Machine
Power supply:220VAC, 50/60Hz,Single-phase
Power :1000w
Origin:China
Product description: AOT-MSK-155 slurry feeding device is designed for lithium-ion battery coating process, and can be applied to various slurry feeding devices.
INQUIRY

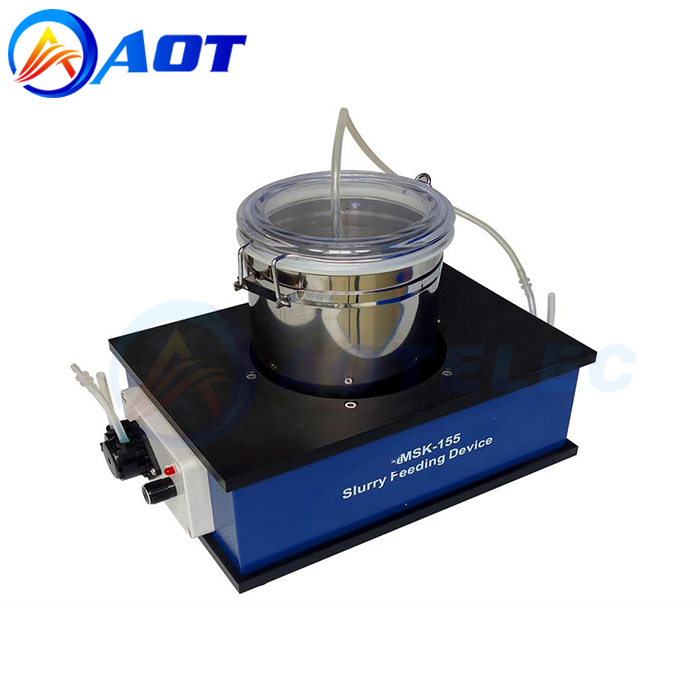

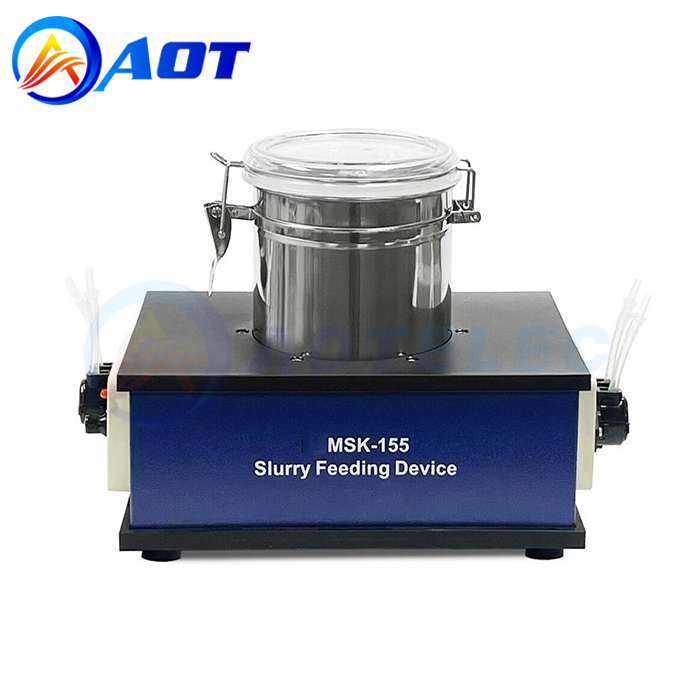

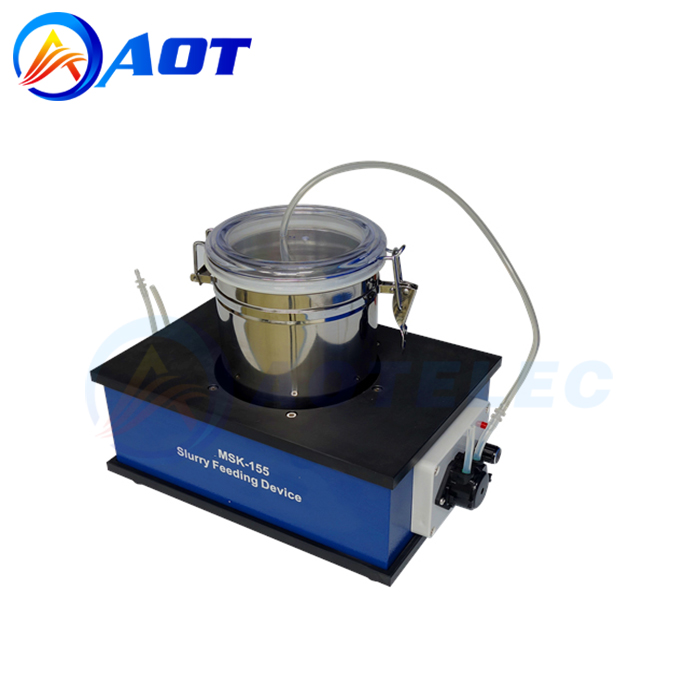

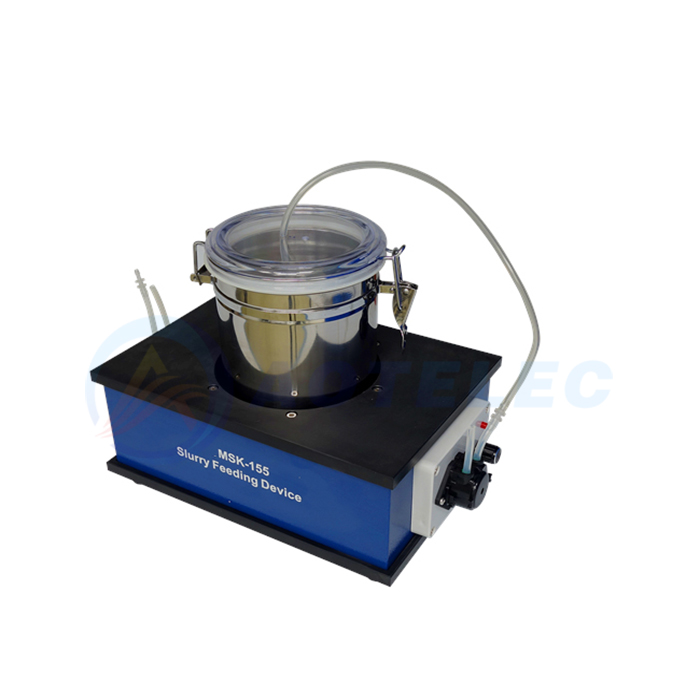

AOT-MSK-155 slurry feeding device is designed for lithium-ion battery coating process, and can be applied to various slurry feeding devices. The device is equipped with two sets of peristaltic pump feeding and buffer tank, which can feed positive and negative independently to prevent cross contamination.

Product name	Slurry feeding device
Voltage	AC220V±10%, 50Hz/60Hz
Power	1000w
Peristaltic Pump	Two sets of peristaltic pumps can delivery
Feeding rate	19～65ml/min, adjustable
Slurry Reservoir	2L Volume, 304 stainless steel

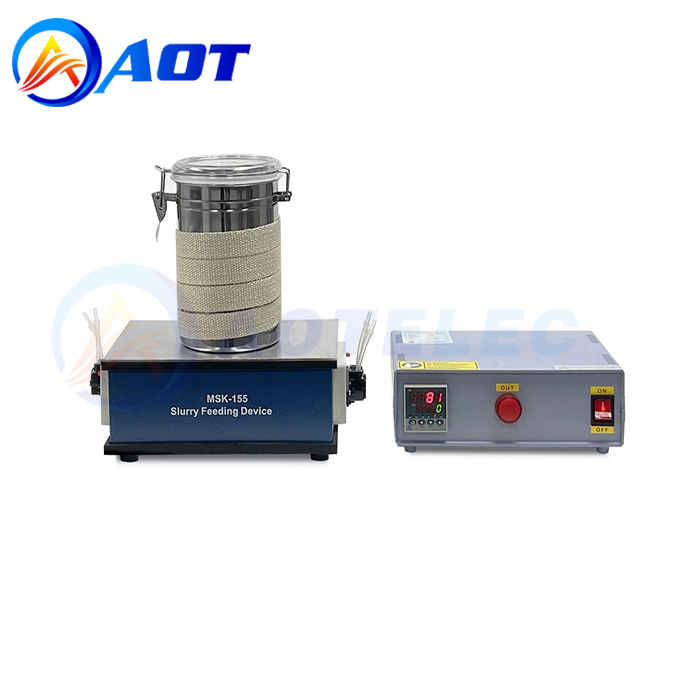

Temperature Controller (Optional)	The controller uses PID via SSR power control Single-point setting controller Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy.
Slurry Feeder	320 x 180 x 210 mm (L x D x H)
Temperature Control Unit	260 x 190 x 90 mm ( L x D x H)
Weight	36KG(include temperature control unit)
