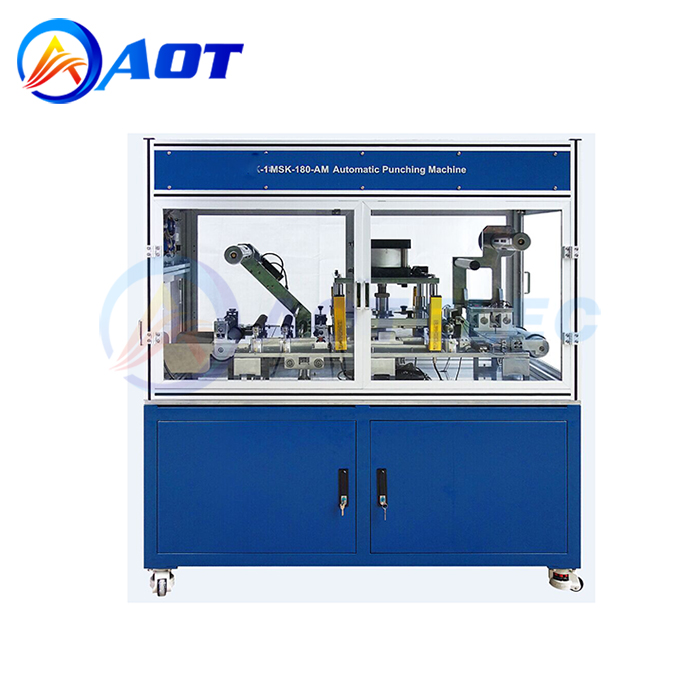

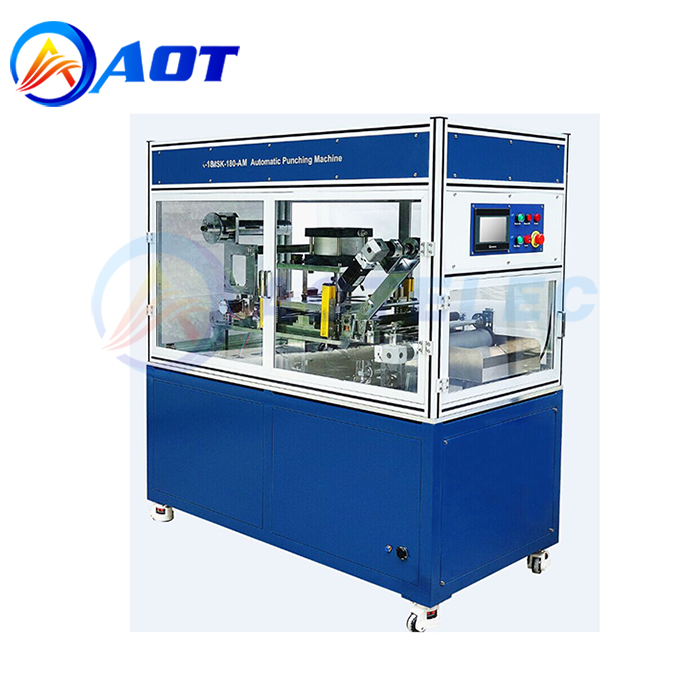

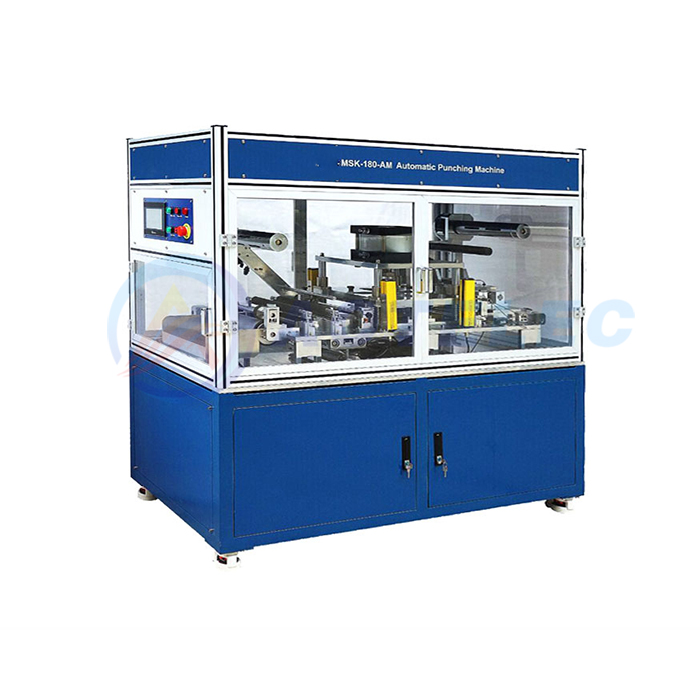

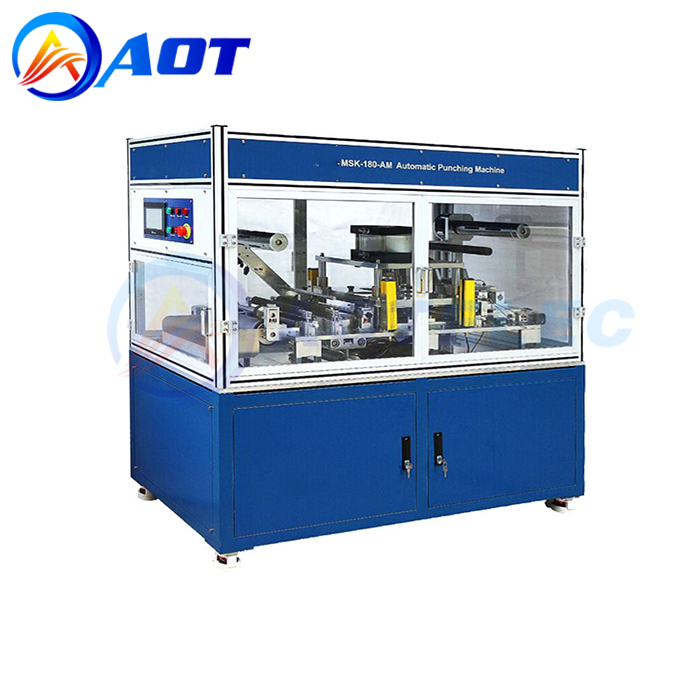

Automatic Die Cutter for Pouch Cell Battery Electrodes

Automatic Die Cutter for Pouch Cell Battery Electrodes

Product Name :Battery Die Cutter
Power supply:220V/110VAC, 50/60Hz,Single-phase
Power :1000w
Origin:China
Product description: AOT-MSK-180AM automatic die-cutting machine is a device for die-cutting cathodes and anodes electrodes of lithium-ion laminated batteries.
INQUIRY

AOT-MSK-180AM automatic die-cutting machine is a device for die-cutting cathodes and anodes electrodes of lithium-ion laminated batteries. This equipment can realize the continuous punching of single or multiple pieces of coiled pole pieces, and can provide various shapes of dies according to customer requirements to realize the forming of battery pole pieces of different sizes.

Specification

Working Voltage	220V/110AC +/-10%, 50/60 Hz, single-phase,
Power	1KW
Gas source	0.5-0.8MPa compressed air
Cutting Speed	10 Pieces per minute
Cutting Thickness	Max. 0.5mm
Deviation Control	±0.5mm
Cutting Force	Max. 3 Ton
Cutting Precision	± 0.1 mm
Coil Diameter	Max. 250mm((Length about 220m)
Substrate width	Max.280mm(The distance from one side to the die-cutting edge is not less than 15mm)
Cutting Size	Max. L250*W250mm The customized cutting die is available upon request

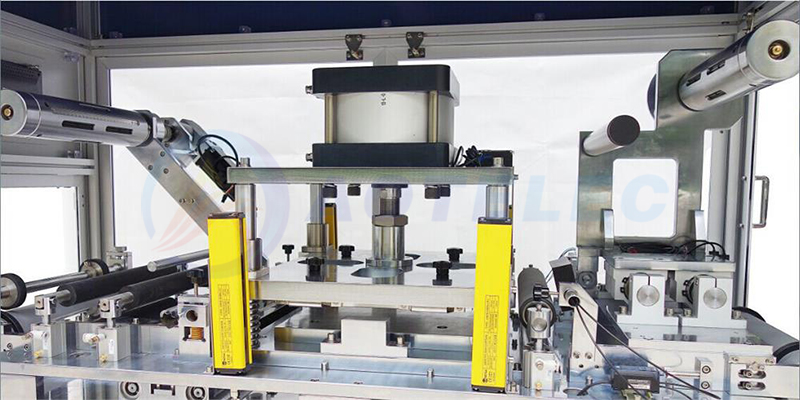

Features	1. Roll-type pole piece feeding, knife template to realize die-cutting, equipped with waste rewinding; 2. The PET film material is discharged on a tape, and the receiving box collects the die-cut pole pieces; 3. Pneumatic drive, adjustable die-cutting pressure and die-cutting speed; 4. High-strength frame, upper and lower precision platens, high-performance cutters, ensure die-cutting effect; 5. Die-cut products have small burrs and less powder loss; 6. It can count automatically, and the safety light curtain is designed to interlock to ensure safe operation; 7. Equipped with a set of standard positive and negative electrode dies, the shape of the dies can also be made according to customer requirements; 8. It can count automatically, and the safety light curtain interlock is designed to ensure safe operation;

ouch Cell Battery Electrodes Die Cutter
