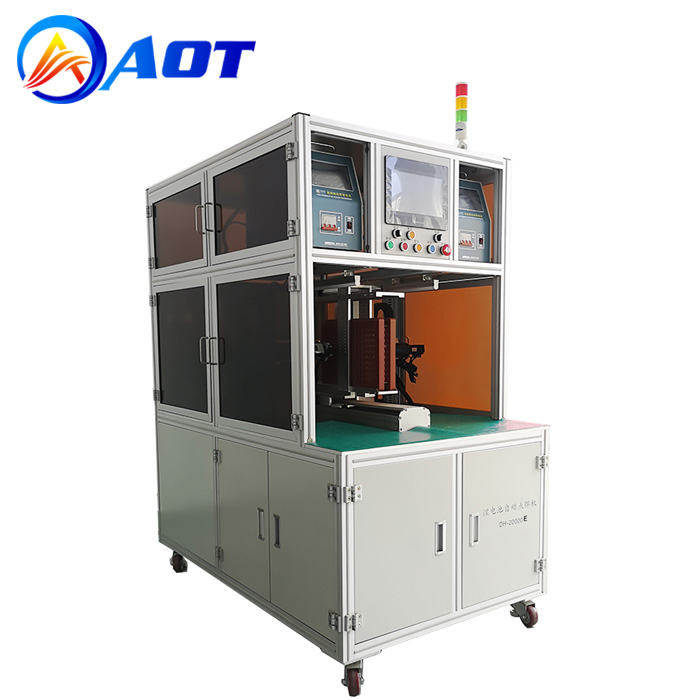

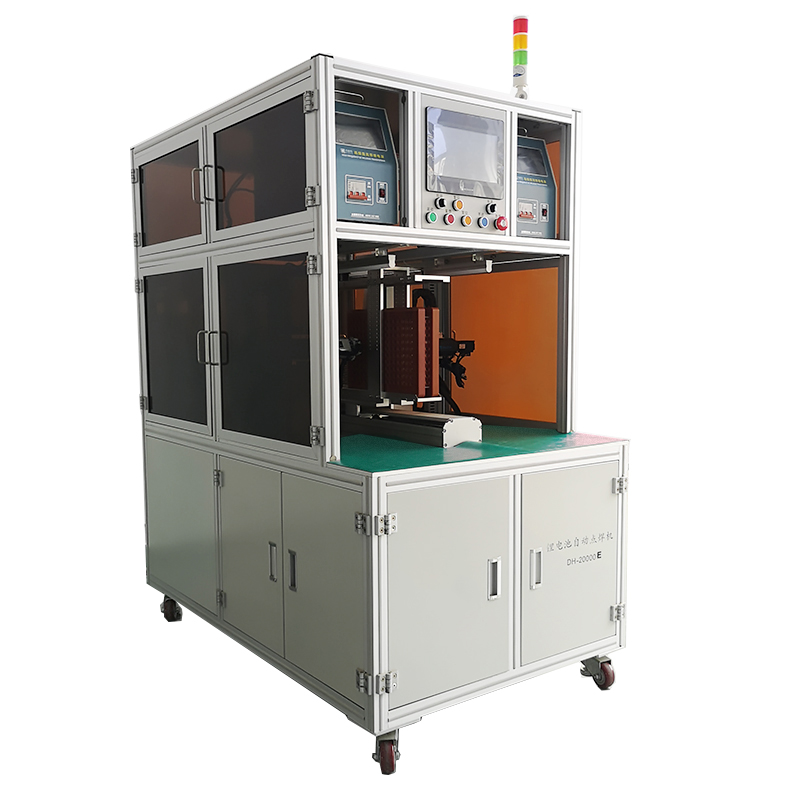

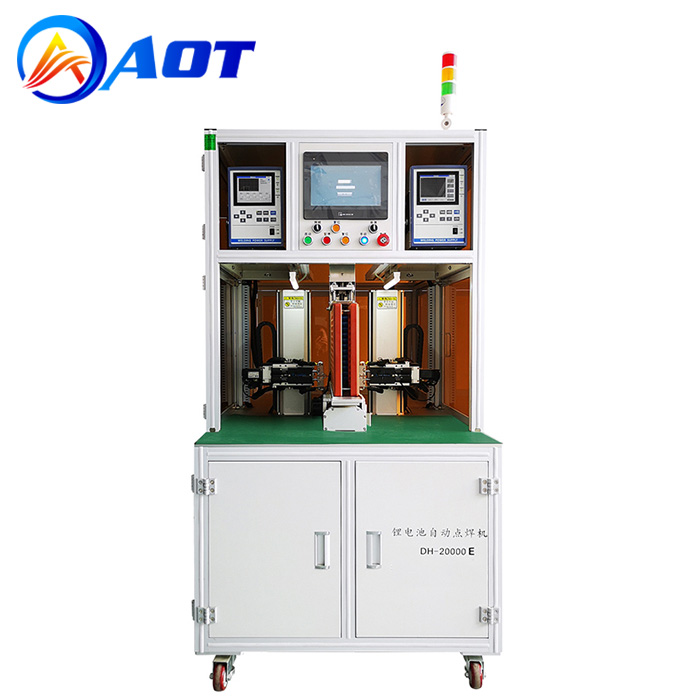

Automatic Double-Side Spot Welding Machine for 18650 Battery Pack

Model: AOT-DH-20000
Welding Thickness: 0.12-0.2mm
Suitable: 18650 26650 32650
Warranty: 2 years
Product description: High efficiency double-sided automatic spot welding machine AOT-DH-20000 design for 18650 cylindrical battery pack assembly with fast welding speed.
INQUIRY

Semi-automatic Double-side Spot Welder Machine for 18650 Battery Pack Assembly

AOT-DH-20000 Double-side automatic spot welding machine Characteristic:

1. Support breakpoint startup and Manual Start Mode Conversion.

2. High efficiency of double-sided automatic welding.

3. With welding current monitoring system, it can monitor welding current in real time.

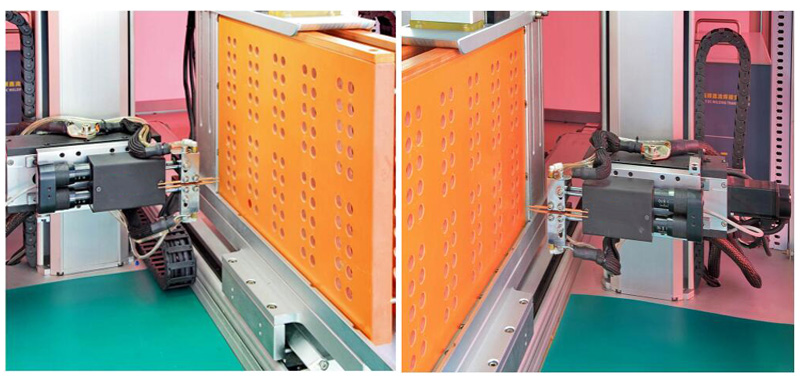

4.Water-cooled circulating heat dissipation system is used in the self-contained welding needle compensation function to effectively reduce the loss of welding needles.

Equipment configuration:

Spare parts	Brand
Servo motor	Panasonic
Stepper motor	Reiser
Solenoid valve	SMC Airtac
Support base	NSK
Linear guide rail	TouchWin
Power Supply	MingWei
Inductorium	OMRON、SUNX
Button	Goncon
Electric relay	OMRON

Technical Specifications:

Device parameters
Product model	DH-20000E
Product Name	Double-side automatic spot welding machine
power supply	quarter-phase 220V±10%/50Hz±10%
Thickness of flat welded nickel sheet	0.12-0.2MM
Welding speed of nickel sheet	0.7-0.8S/PCS power<2000W
Spring pressure connection	1.0-0.5KG
Size(LMH)	10609001680mm
welding source	Need to be allocated
production efficiency	3500PCS/HOURS
Effective welding stroke	Y axis 560 (Customizable)
Effective welding stroke	Z axis 280 (Customizable)
Control component	Motion control system
Warranty	2 years with lifetime support
