Desktop Electrode Slitting Machine for Lithium Battery

Desktop Electrode Slitting Machine for Lithium Battery

Product Name: Slitting Machine
Power: AC 110V-220V
Applicable Industries: Battery Making Equipment
Warranty: 1 Year
Product description: Battery Electrode Plate Slitting and Cutting Machine for Cylinder Battery
INQUIRY

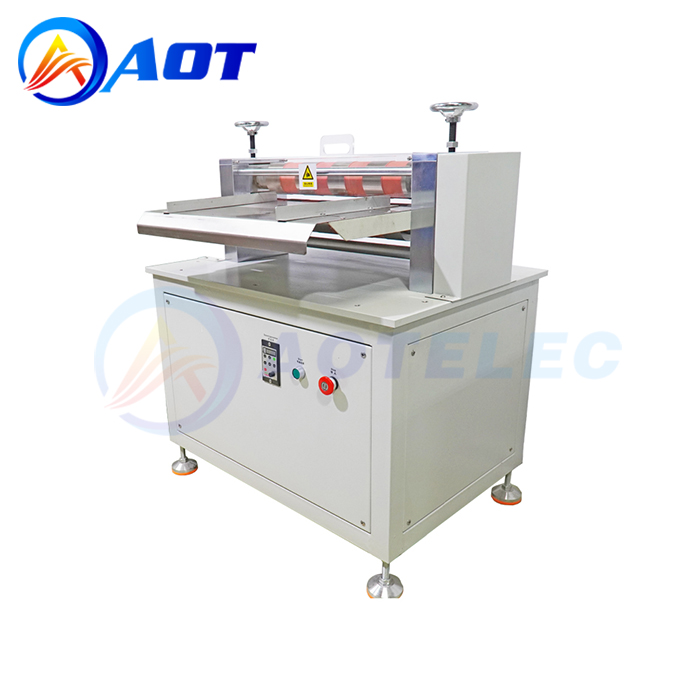

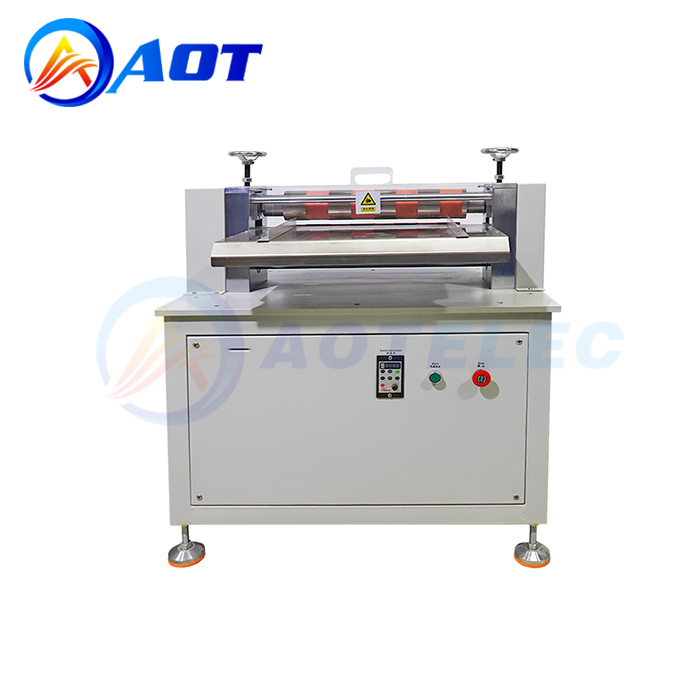

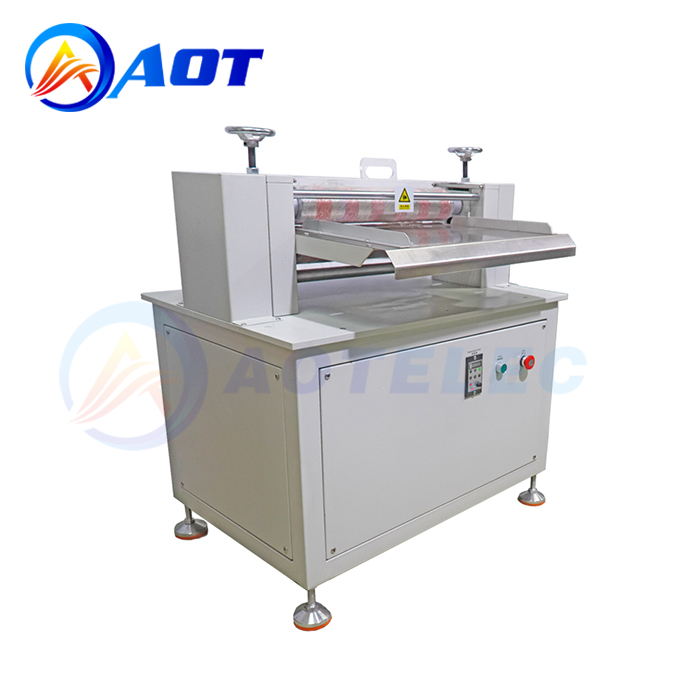

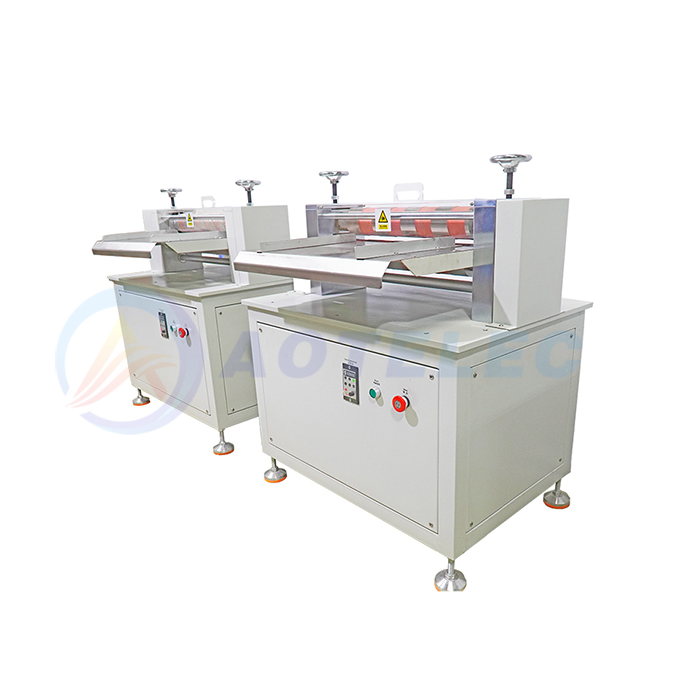

AOT-FT300 is semi-automatic slitting machine (roll slitting) for preparing electrode of cylinder batteries in R&D laboratories.

The equipment is used in slitting the pasted electrodes-plates of rechargeable Li-ion batteries. The substrate of electrode-plate is steel belt or copper belt. The verge of the cut plate is tidy, size of cut plate is of high precision, and the slit plates loss no powder, so the equipment is the important one in processing the electrodes-plates.

Product Name	Battery Electrode Slitting Machine
Working Voltage	110/220V ± 10%, 50/60 Hz
Max. Power Consumption	1000 W
Slitting mode	Single knife hobbing
Knife type	Upper and lower round knife
Slitting width	20~600 mm
Slitting thickness	100~300 um
Slitting Precision	±0.05mm
Hob diameter	100mm
Slitting speed	4m/min, Adjustable
Cutting stroke	250 mm
Product Dimensions	850mm (L) * 620mm (W) * 1000 mm(H)
Weight	200 kg
Warranty	One year limited warranty with lifetime support
