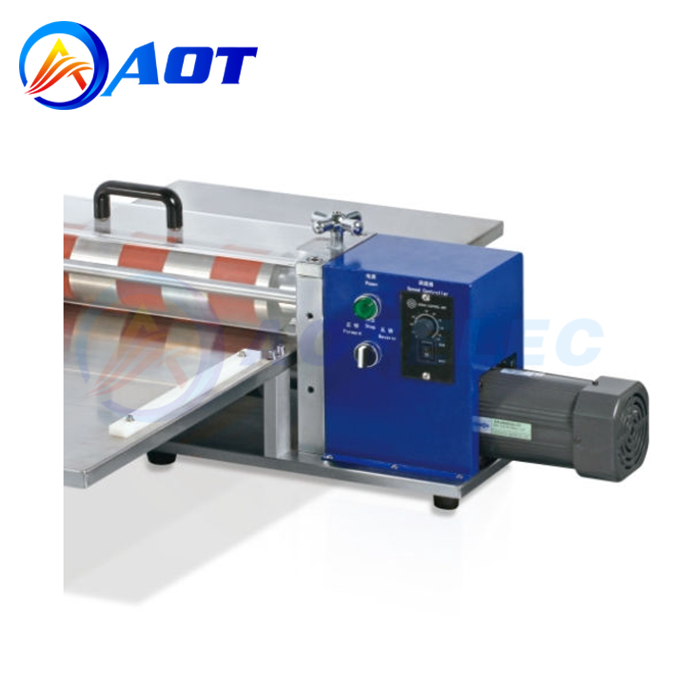

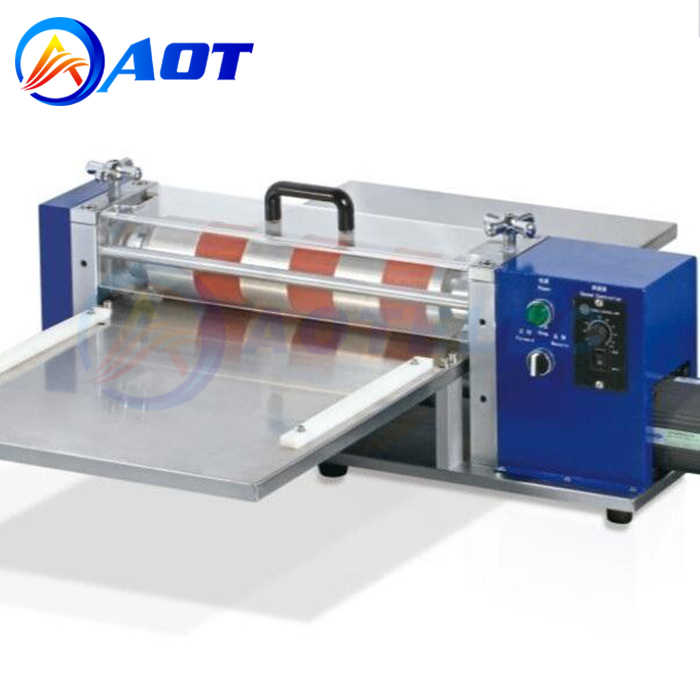

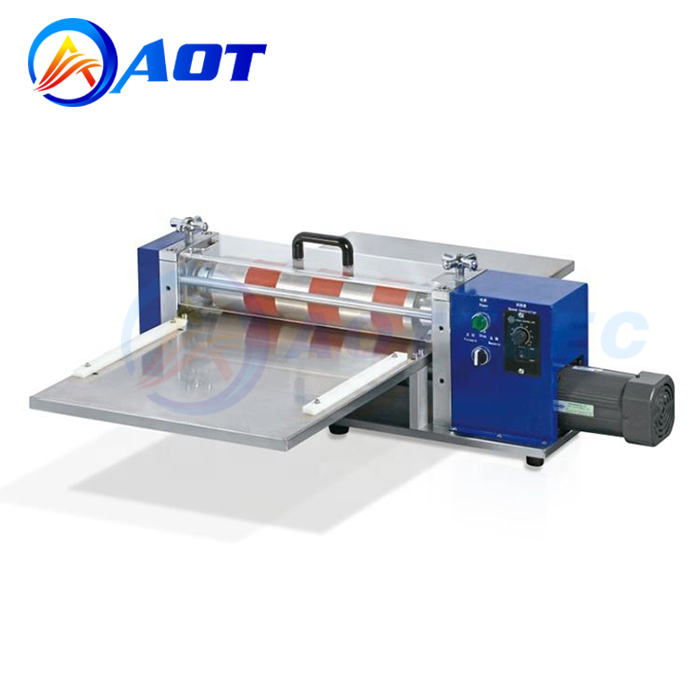

Battery Electrode Slitting Machine For Lithium Battery

  • Product Name : Electrode Slitting Machin
  • Power supply:AC220V/50Hz (AC110V/60HZ)
  • Width:20-300mm
  • Origin:China
  • Product description: Pouch Cell Slitting Machine For Lithium Ion Battery Electrode Slitting
  • INQUIRY

AOT-FT300 electric slitting machine can be applied to the precise cutting process of positive and negative electrodes of lithium-ion batteries. Sheet feeding, cutting with upper and lower circular knives, electric drive, cutting width can be adjusted according to the adjustment of the spacer.



Product Name

Battery Electrode Slitting Machine

Voltage

AC220V/50Hz (AC110V/60HZ)

Power

0.5KW

Width

20~300mm

Standard cutter

56±0.1mm,56±0.1mm,56±0.1mm58±0.1mm,58±0.1mm.58±0.1mm.

Suitable thickness

80-300μm battery electrode

Up and Down gap

Handwheel adjusted 0.2-0.4mm

Cutter diameter

100mm

Cutter material

Ultra-fine grained alloy steel

Slitting speed

<2m/min ,adjustable

Dimensions

L 840mm×W 600mm×H 300mm

Weight

89kg

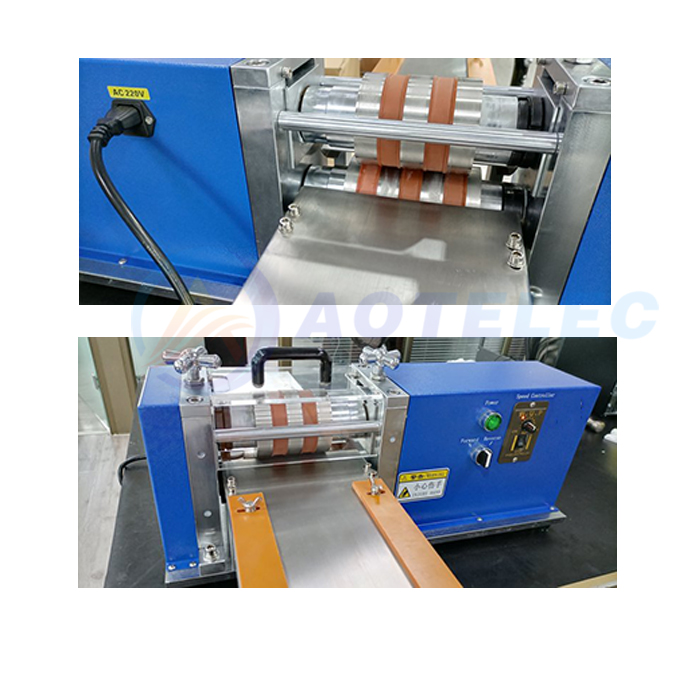

Battery Slitting Machine

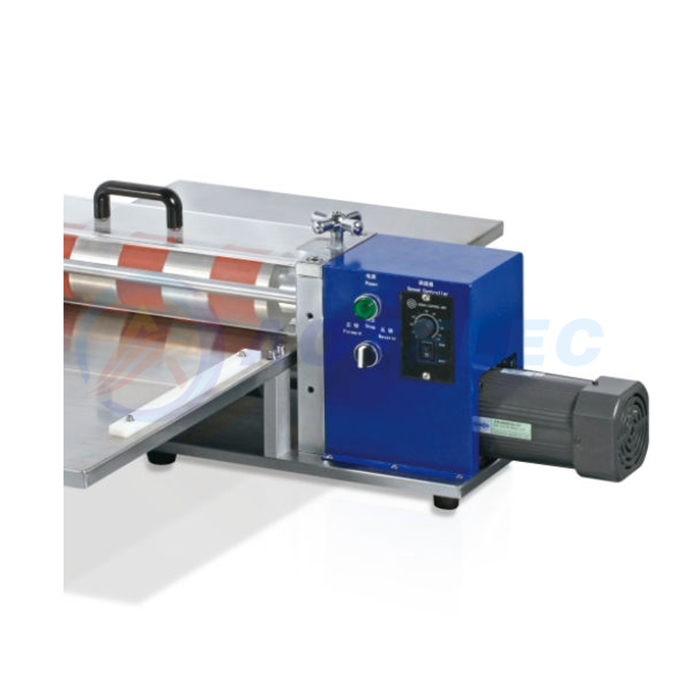

Battery Electrode Slitting Machine
