Voltage

AC220V single phase，50/60Hz

Power

Max2.5 KW

Standard Working Temperature

1600°C

Maximum Working Temperature

1700°C(< 3 hours)

Heating Rate

0 ~20 °C/min (≤10°C/min recommended)

Temperature Stability

+/- 1°C

Heating Elements

1800 grade MoSi2

Thermocouple

Type B double platinum rhodium thermocouple

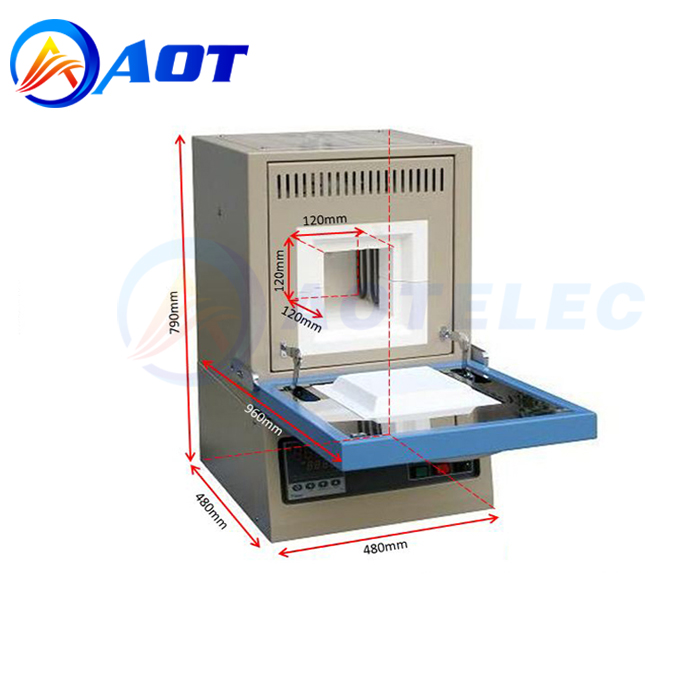

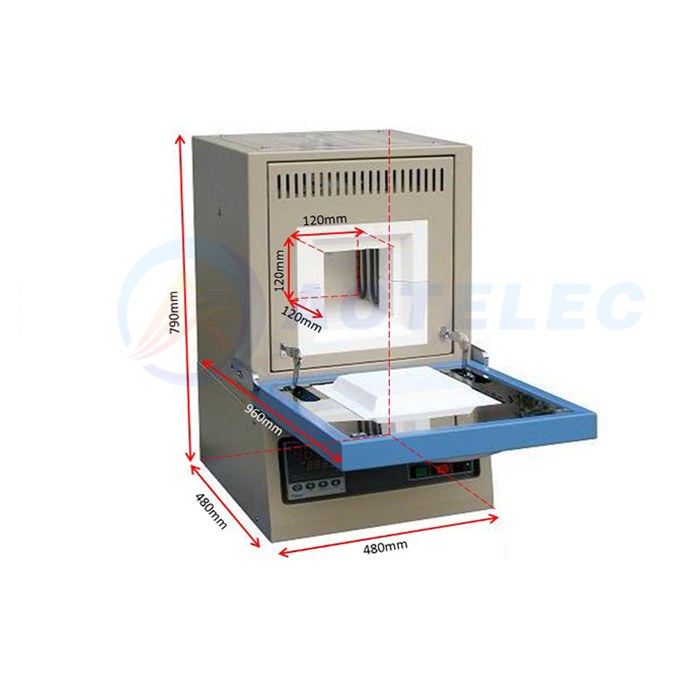

Chamber  Dimension

L 120×W120×H120mm

Overall  Dimension

L 480×W 480×H 790mm

Temperature Controller

Type B double platinum rhodium thermocouple contains a YD518P temperature controller

1. PID automatic temperature control system

2.Intelligent 30-segment programmable control

3. Accuracy of constant temperature control: ± 1 ℃

4. Default DB9 PC communication connection port

5.All electrical components have passed UL or MET approval,

Furnace Structure

1.The inner furnace is made of 1800 grade aluminum oxide polycrystalline fiber material, and the furnace surface is coated with high-temperature aluminum oxide coating imported from the United States, which can improve the reflectivity and heating efficiency of the equipment, and also extend the service life of the instrument.

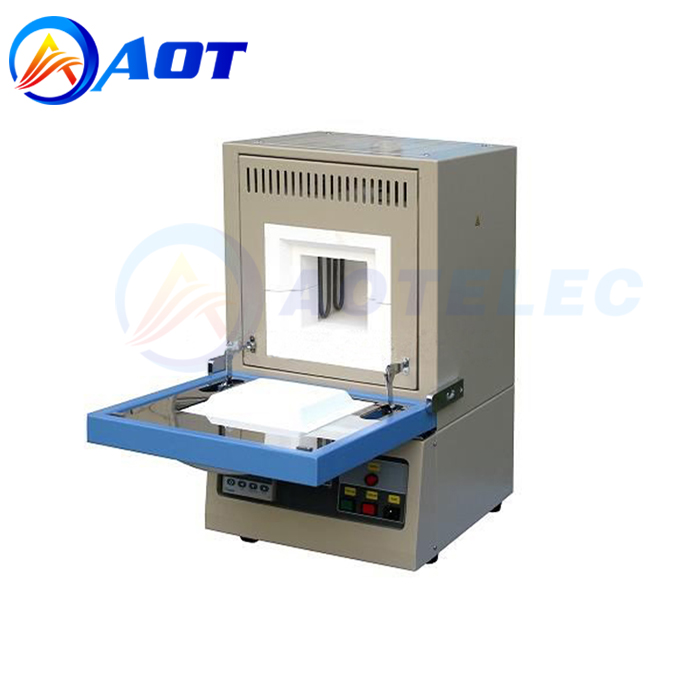

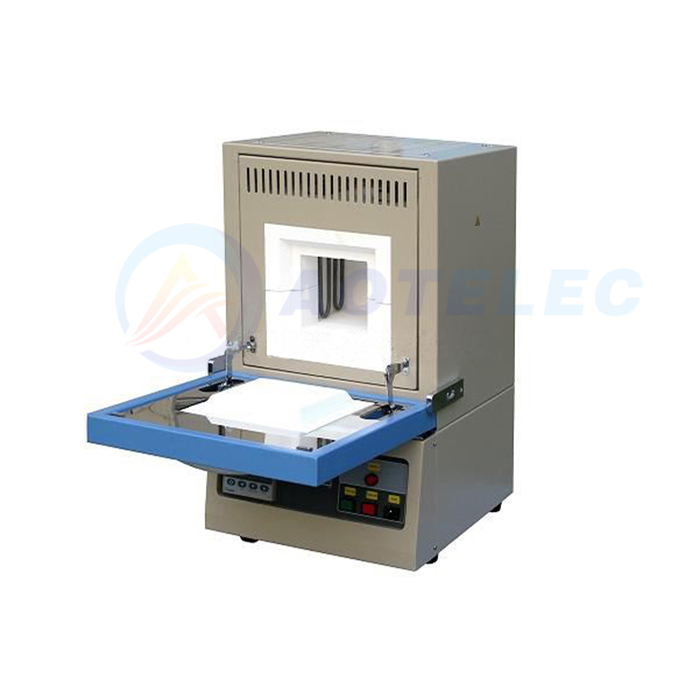

2.The pull-down door design is convenient for taking and placing samples.

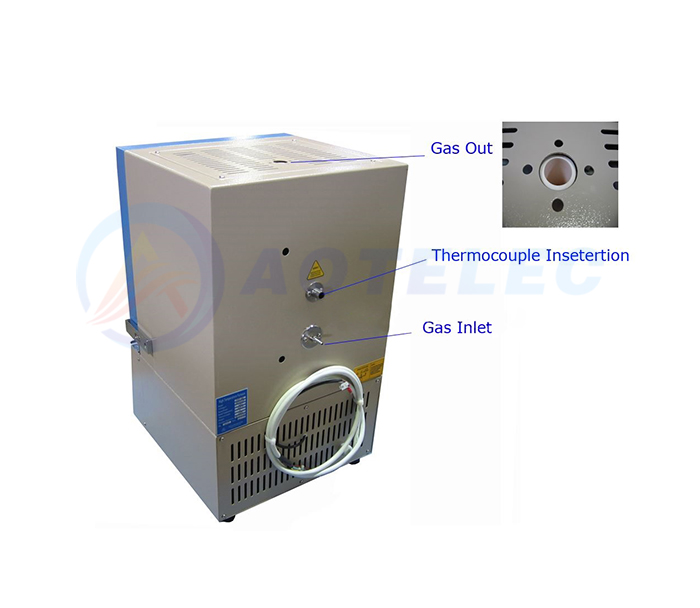

3. Built-in air inlet (back) and exhaust outlet (top) are used to inject gas during heating treatment.

4. It is equipped with overheat and couple breaking protection, and has the function of opening the door and power-off.

Weight

72kg
