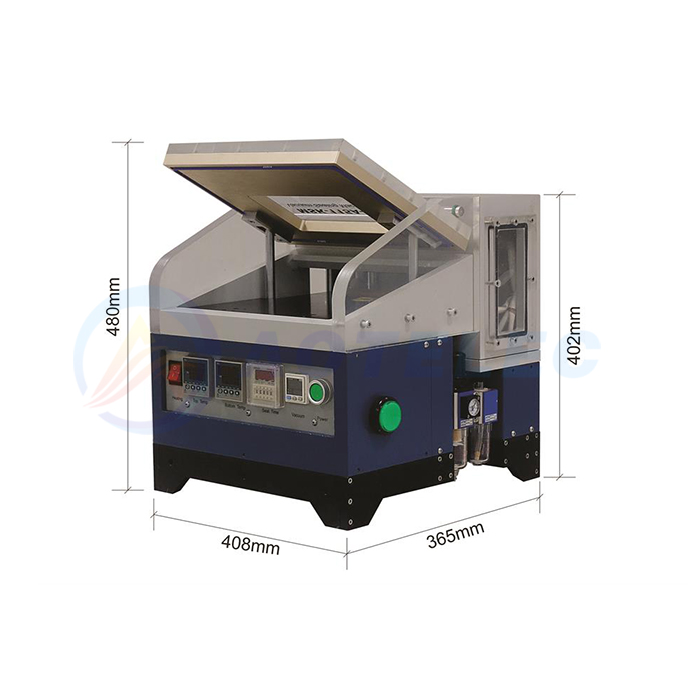

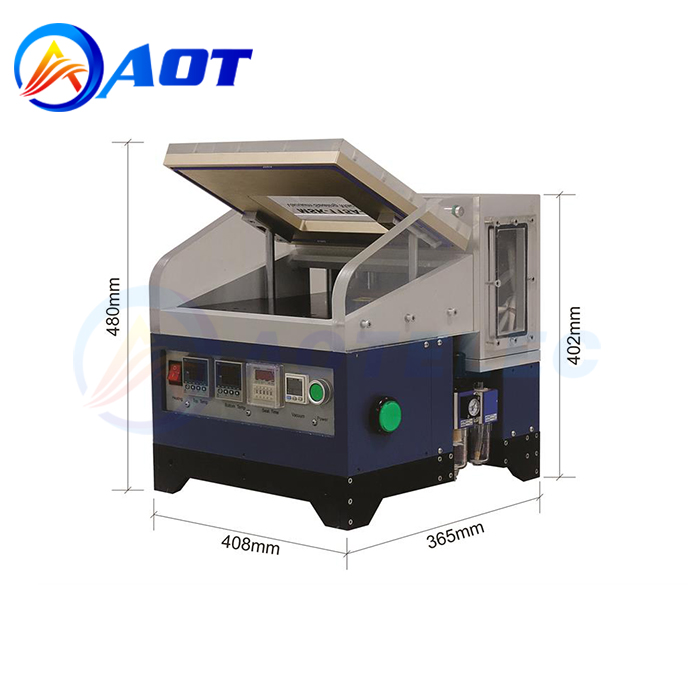

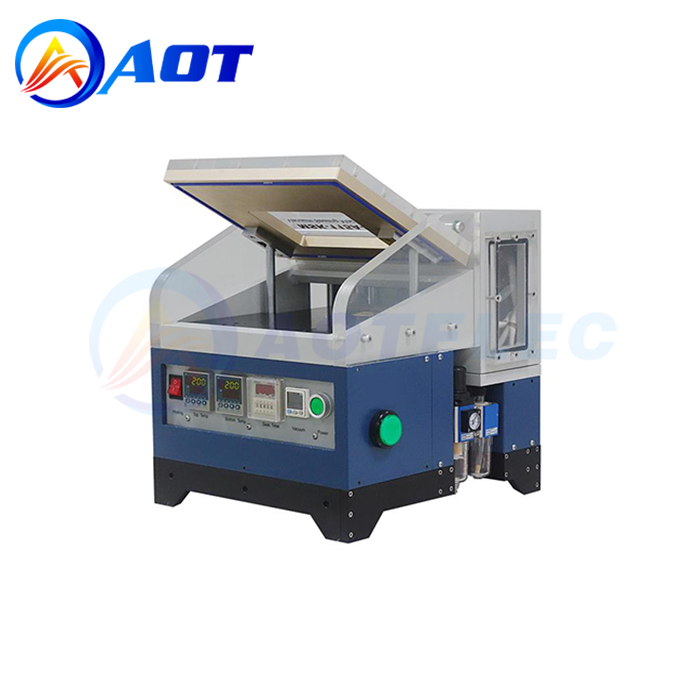

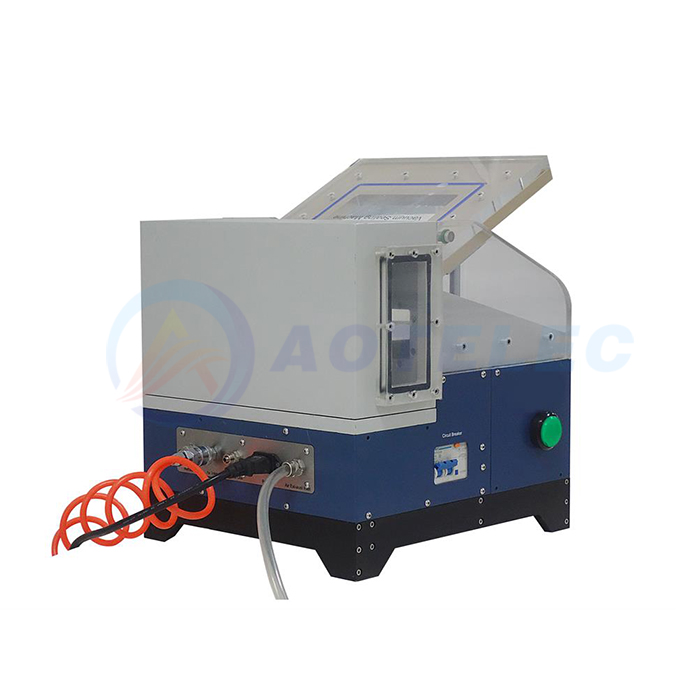

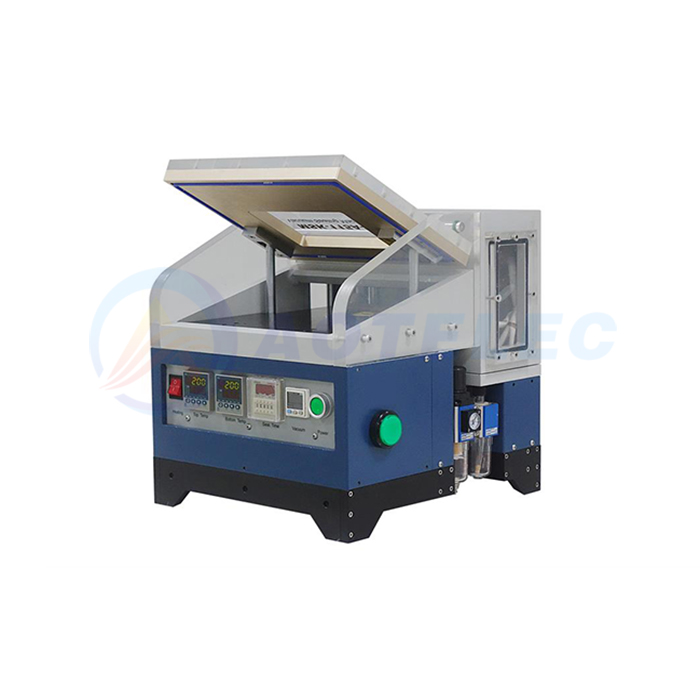

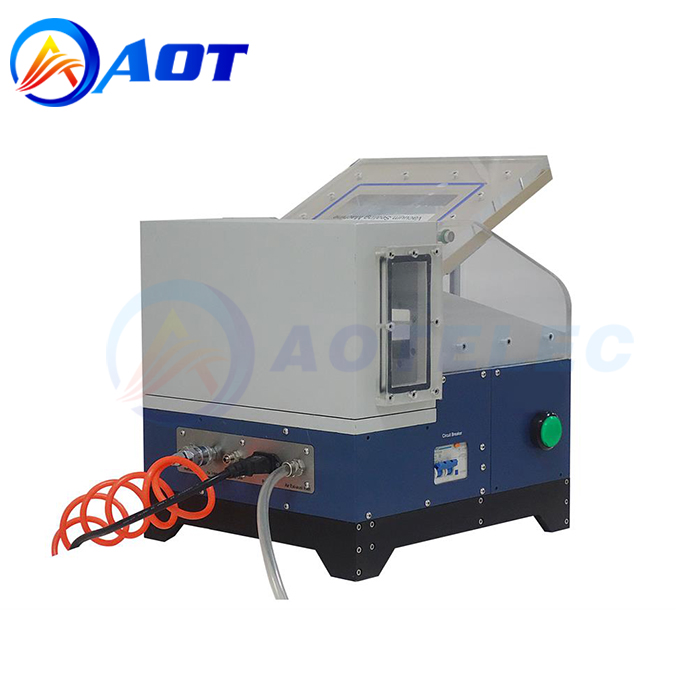

Compact Vacuum Sealing Machine for Preparing Pouch Cell Battery

  • Product Name :Battery Sealing Machine
  • Power supply:220/110VAC, 50/60Hz,Single-phase
  • Power :700w
  • Origin:China
  • Product description: AOT-MSK-115AS this equipment can be applied to the sealing of aluminum laminated casings for pouch cell batteries.
  • INQUIRY

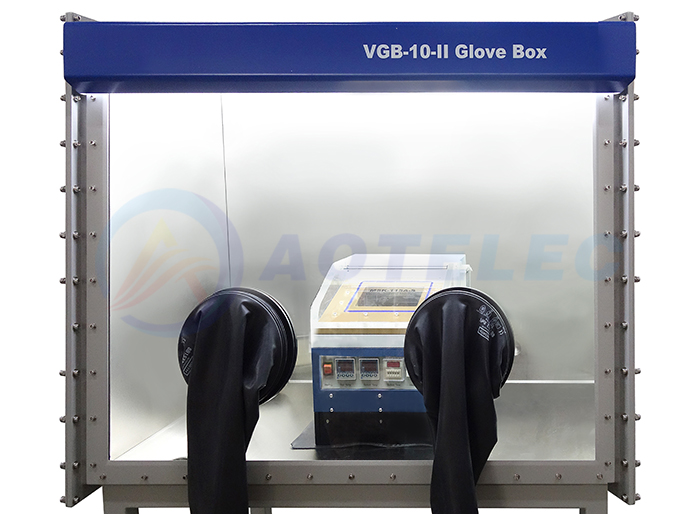

AOT-MSK-150AS this equipment can be applied to the sealing of aluminum laminated casings for pouch cell batteries. The machine is compact in design, can be placed in a glove box, and can realize the functions of vacuuming and heating sealing. The working chamber of the device has good vacuum retention, good sealing effect, and good flatness of the finished battery.



Product name

Battery Sealing Machine

Voltage

Single-phase AC220V ± 10%, 50Hz (AC110V/60Hz can be customized)

Power

700W

Battery Size

Max .L200*W190*H12mm

Sealing Width:

6 mm (customizable)

Sealing Length

Max.190mm

Sealing Time

0 ~ 99 seconds adjustable (3 ~ 4 seconds recommended)

Sealing Temperature

Two independent digital temperature controllers are built-in.

Temperature range: 50 ~ 250 adjustable with control accuracy of +/- 2

Recommended temperature: 200 for top sealing die, and  160 for bottom sealing die

Gas Source

0.5-0.8MPa compressed air or inert gas

Working Environment

Controlled water oxygen glove box or dry room use

Sealing Pressure

The sealing pressure is about 483.8N at 0.7MPa air pressure, and the pressure can be adjusted by air pressure

Vacuum Degree



Adjustable, maximum not less than - 95KPa

Gas consumption

 0.1L compressed gas/once per seal

Exhaust volume

Exhaust volume

 Weight

55KG
