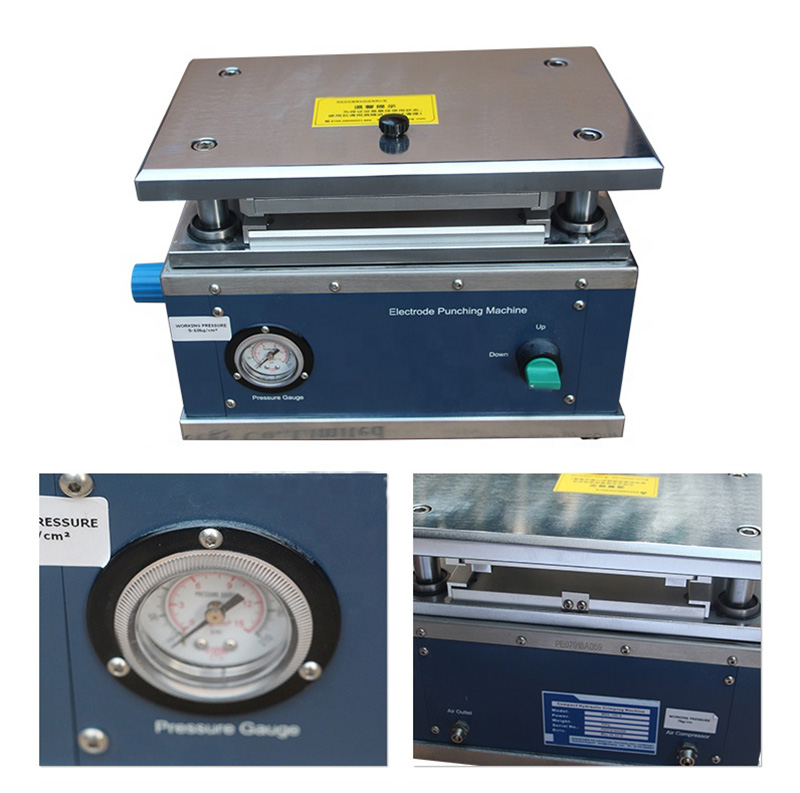

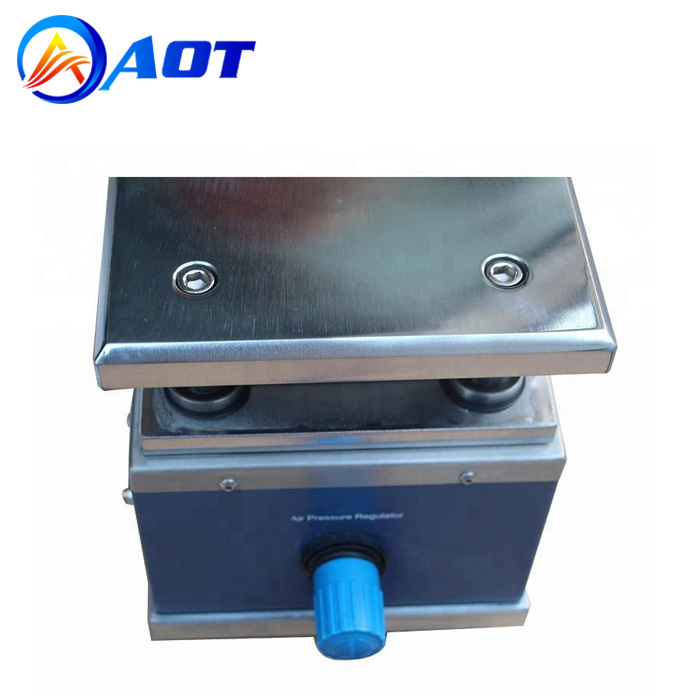

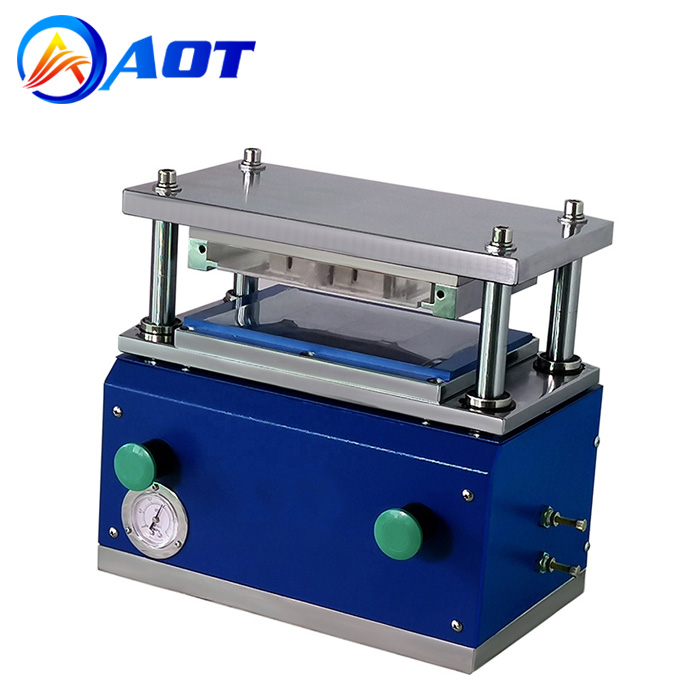

Compact Pneumatic Die Cutter Machine for Pouch Cell Electrode Cutting

Model: AOT-DC-80
Cutting Accuracy: ±0.1mm
Max punching size: L85mm*W65mm
Origin: China
Product description: This small pneumatic die cutter machine is suitable for die-cutting of positive and negative electrodes of pouch cell batteries, it can be placed in the glove box.
INQUIRY

Compact Pneumatic Die Cutter Machine for Pouch Cell Electrode Cutting

Specifications

AOT pneumatic die cutter is suitable for die-cutting of positive and negative electrodes of batteries, punching sheet type electrode by pneumatic method and can be placed in the glove box.

Main features:

Sheet type electrode feeding, knife template for die cutting, can be placed in the glove box

Easy to replace the cutter

Long die life, normal use ≥30,000 times

No quality defects such as burrs, powder drop, and indentation

Adopts four pillar structures, up and down slip smooth and high precision

Exquisite appearance, easy to operate, safe and reliable, small size

Main Parameters:

Model	Pneumatic Battery Electrode Die Cutter AOT-DC-80
Vertical burr	≤12μm
Horizontal burr	≤20μm
Max punching size	L85*W65mm(can be customized according to requirements)
Punching accuracy	±0.1mm
Punching pressure	Max. 1T (0.5MPa compressed air) Punching the battery electrode recommended pressure 500Kg
Stroke	35mm
Compressed air	0.5MPa If placed in a glove box, the gas used is the same as that used in the glove box.
Dimension(LWH)	350230300mm
Weight	32kg
Warranty	One year limited warranty and lifetime support
