Lab Manual Lithium Battery Stacking Machine for Pouch Cell

Lab Manual Lithium Battery Stacking Machine for Pouch Cell

  • Model: AOT-MST-200
  • Application: Pouch Cell
  • Max size: 200*200mm

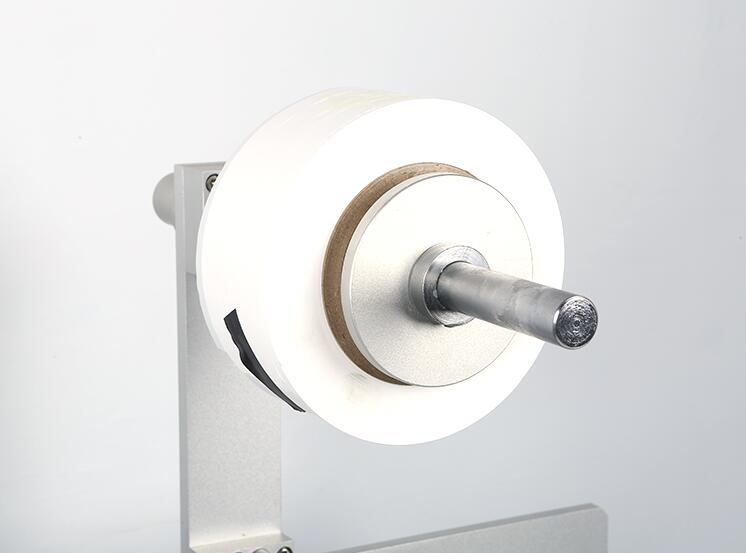

  • Max Separator Roll Diameter: 250mm
  • Product description: Laboratory Manual Lithium ion Battery Stacking Machine for Pouch Cell
  • INQUIRY

Lab Manual Lithium Battery Stacking Machine for Pouch Cell

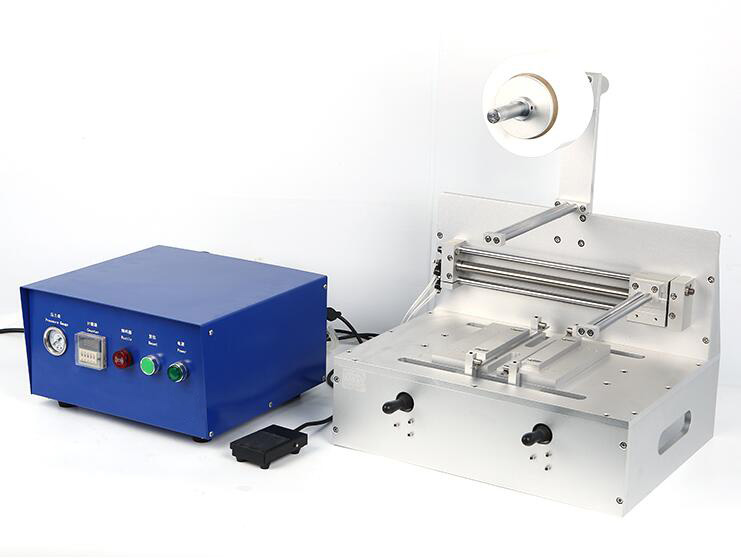

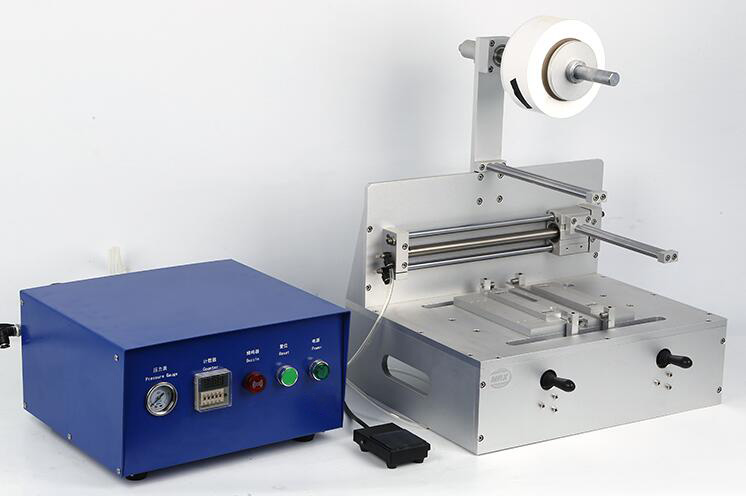

This equipment is used for stacking of battery cores that stacks the anode/cathode and separator in Z shape. Stacking machine and control box integration, save space, easy to set parameters, easy to operate.

Features :

1. Desktop, can be placed on normal table surface.

2. It is easy to maintain, operate and commission the machine.

3. The size range of applicable stacking sheets is big.

4. Work efficiency is high, with digital timer.

5. Use foot switch to control cylinder work.

6. Machine dimension is small, appearance shape is nice.

Application :

Battery lab

Battery research

Lithium ion battery lab

Material research

Trial-production

Model

Pouch CellStacking Machine  AOT-M-S-200

Voltage supply

AC 110v-220V  50Hz/60Hz±10%, Customized

Power

100W

Warranty

One Year limited warranty with lifetime support

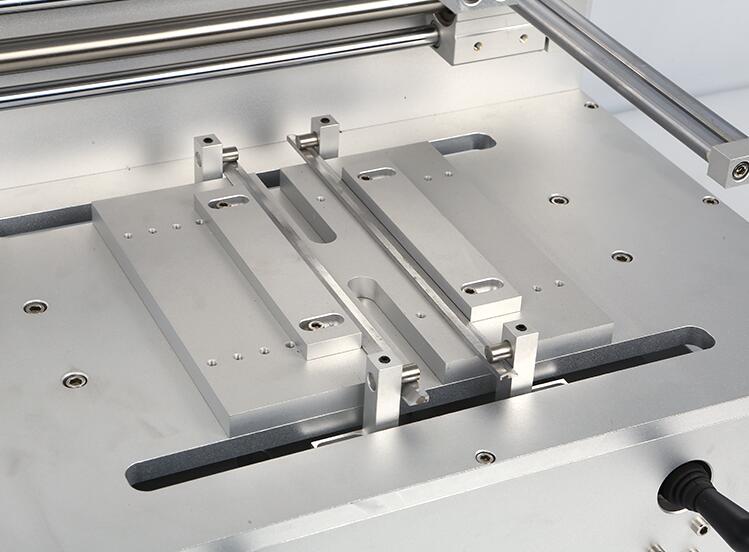

Stacking Layer Length

L(0-200)mm, W(0-200)mm

Max separator feeding diameter

Dia.250mm

Fixed travel distance

400mm

Travel cycle

1 - 9999 cycles

Air supply

0.25-0.55MPa

Machine dimension(L*W*H)

650*450*600mm

Weight

70kg
