  • 300mm High Precision Roller Press Machine for Battery Electrode Calendering

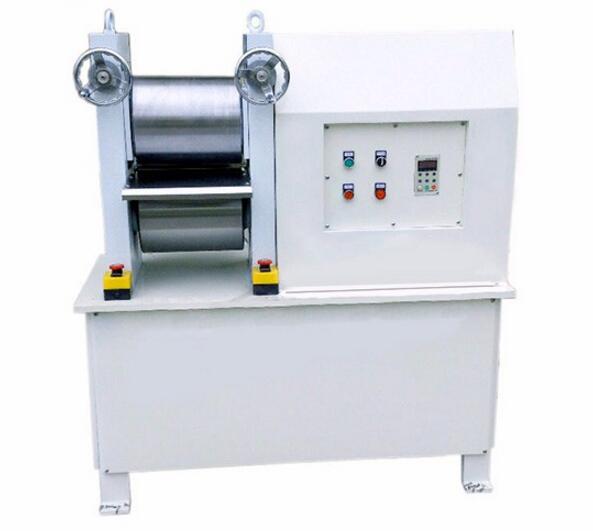

300mm High Precision Roller Press Machine for Battery Electrode Calendering

300mm High Precision Roller Press Machine for Battery Electrode Calendering

  • Model: AOT-M-RP-300
  • Origin: China
  • Rolling Speed: 0-120mm/s adjustable
  • Roller diameter tolerance: 0.004mm
  • Product description: High Precision Roller Press Machine for Battery Electrode Calendering
  • INQUIRY

AOT-M-RP-300 is a UL/CSA ready electric rolling press with variable speed 24DC gear motor and UL certified switch power supply, which can be used from 110V- 220VAC under Argon gas glove box. It has dual rollers and is an ideal rolling press for preparing electrode sheet for Li-Ion batteries research after coating and drying.



SPECIFICATIONS

Roller Dimensions

300mm(Dia.) x 350mm(W)

Working Voltage

110V - 240V AC, 50/60Hz, automatic switch for worldwide use

Structure

Heavy duty steel frame, gears, and handle
Dual micrometer for accurate thickness adjustment in the range 0 - 8 mm Maximum

Roller

1. Roller diameter tolerance: 0.004mm
2. Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating
3. Rolling Speed: 0-120mm/s adjustable

Roller Surface Hardness

62 HRC
Never roll materials with hardness > 50HRC

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support

Warnings

1. Never roll materials with hardness > 50HRC
2. In order to prolong the lifespan of the roller bearings, regular lubrication is recommended.
3. Multi-step thickness calibration: When calibrating the thickness, make increment/decrement of 0.1mm or 20% of sheet thickness each time.
4. Must clean roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion
5. This rolling machine can be used under Ar gas.
