AOT-YS-100 Nickel Strip Cutting Machine Launches to Meet Growing Demand in Battery Manufacturing

Advanced automatic cutting solution delivers high precision, speed, and versatility for Nickel Strip processing

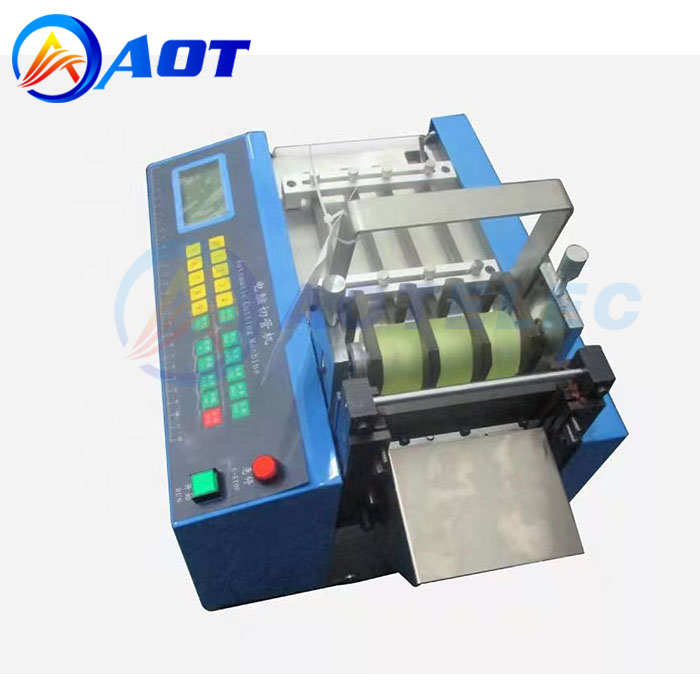

AOT has introduced the AOT-YS-100 automatic nickel strip cutting machine, a high-performance solution designed to address the precision cutting requirements of the battery manufacturing industry and beyond. Engineered with advanced microcomputer control and servo motor technology, the machine offers manufacturers a reliable, efficient, and versatile tool for processing nickel strips and a wide range of other materials.

The AOT-YS-100 features a cutting width capacity of 100mm and supports cut lengths ranging from 0.1mm to 9,999.9mm, providing exceptional flexibility for diverse production specifications. With a cutting speed of 100 to 120 cuts per minute (at 50mm length), the machine delivers high-throughput performance suitable for both prototyping and mass production environments.

Precision Engineering and Advanced Features

At the core of the AOT-YS-100 is a microcomputer numerical control display system paired with an imported servo motor, ensuring cutting accuracy within ±0.1mm. The machine incorporates an adjustable roller feeding mechanism with automatic pressure adjustment on both sides, enabling rapid material feeding while preventing scratches through a pin-type feeding structure. This design is particularly critical for processing nickel strips used in battery applications, where surface integrity directly impacts product quality.

Key features include:

Programmable control: Cutting length, quantity, and feed speed are freely adjustable via an intuitive LCD display

Automatic operation: The machine automatically feeds and cuts after length and quantity parameters are set, requiring minimal operator intervention

Batch counting: Automatic group accumulation and total count functions streamline production management

Material-out auto-stop: The machine halts automatically when material runs out, enabling unattended operation

Cold or hot cutting options: Adaptable blade configurations accommodate different material types

Versatile Applications Across Industries

While optimized for nickel strip cutting, the AOT-YS-100 demonstrates remarkable versatility across multiple material categories. It efficiently processes PVC tubes, heat shrink tubing, silicone rubber tubes, fiberglass tubes, Teflon tubes, flat cables, wires, copper foil, Aluminum Foil, Velcro tape, elastic bands, webbing, zippers, insulating materials, conductive materials, and various films and sheets.

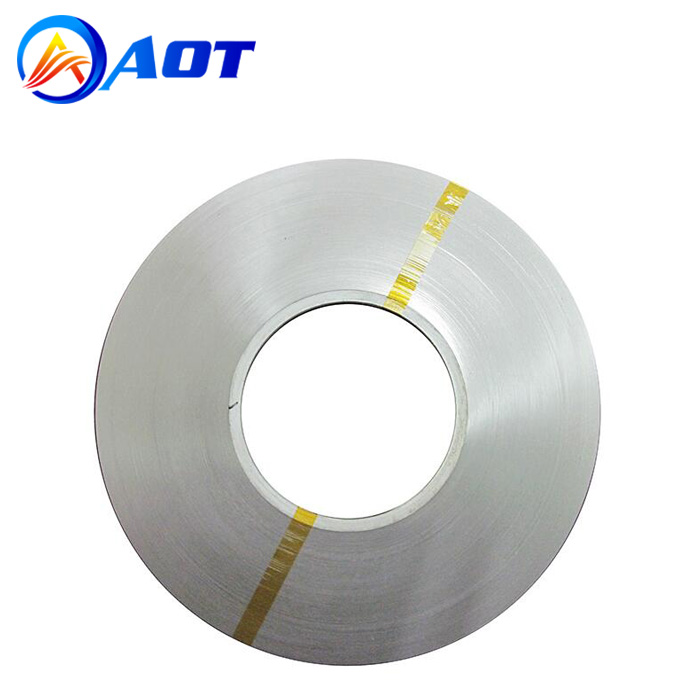

The machine has found particular relevance in the battery manufacturing sector, where precise nickel strip cutting is essential for lithium battery tab production, battery pack assembly, and energy storage applications. Battery manufacturers benefit from the machine's ability to deliver clean, burr-free cuts that ensure reliable weld joints and consistent electrical performance.

Built for Global Markets

The machine operates on 220V/110V 50/60Hz power supplies and features English-language control panels and user manuals, facilitating deployment in manufacturing facilities worldwide. CE certification further demonstrates compliance with international safety and quality standards.

With compact dimensions of approximately L360×W300×H350mm and a net weight of 26-30kg, the AOT-YS-100 requires minimal floor space while delivering industrial-grade performance.

Reliability and Support

The AOT-YS-100 comes with a comprehensive warranty package: a one-year warranty on the complete machine, a three-year warranty on circuit board components, and lifetime maintenance support. This commitment to after-sales service, combined with the machine's robust construction and precision engineering, positions the AOT-YS-100 as a long-term production asset for manufacturers seeking consistent, high-quality cutting results.

As global demand for lithium batteries and energy storage solutions continues to rise, the AOT-YS-100 offers manufacturers a dependable, precision-engineered solution for nickel strip processing that delivers the speed, accuracy, and versatility required to stay competitive in today's fast-paced production environment.
