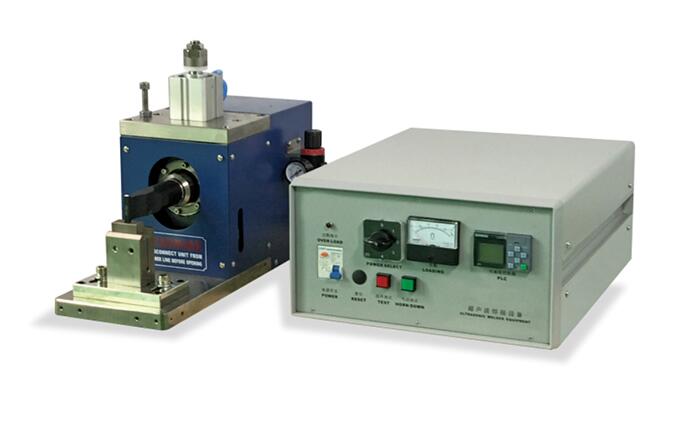

Battery Ultrasonic Spot Welding Machine for Lithium Ion Battery Electrode Sheets Welding

Model: AOT-USW-3000W
Origin: China
Type: Ultrasonic Spot Welder
Welding Ability: 10-30 layers electrode sheets
Product description: Ultrasonic metal welding machine is Designed for Lithium battery tab welding with touch-screen controller. It is designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current
INQUIRY

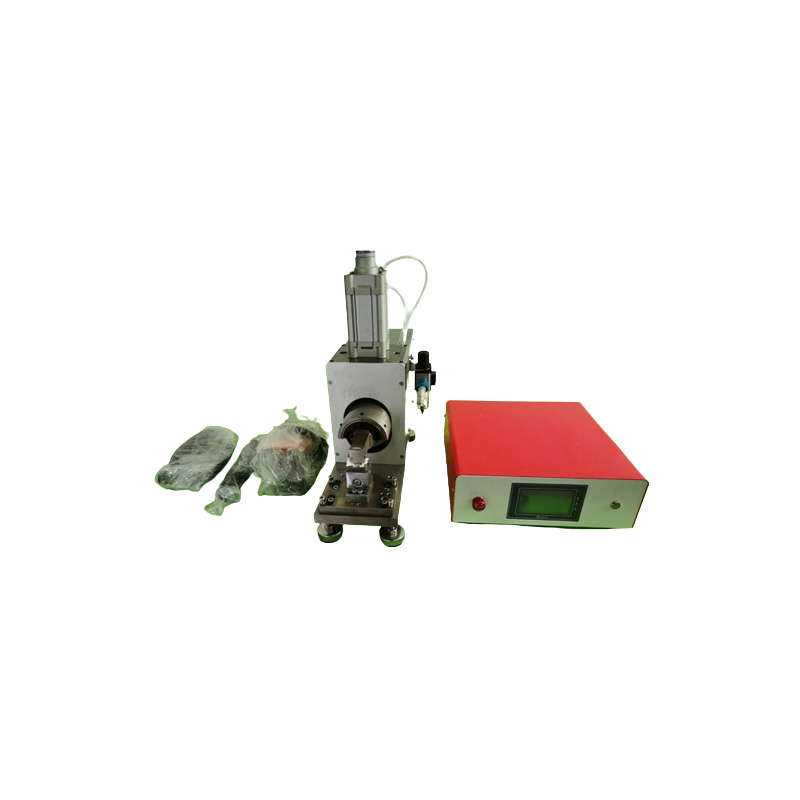

Ultrasonic Metal Welding Machine/Battery Spot Welding Machine For Lithium Ion Battery Electrode Sheets Welding 10-30 Layers

It is a CE Certified ultrasonic metal welder with color touch-screen controller. It is designed for welding stacked electrode sheets and tabs onto current collectors to prepare Li-ion pouch cells & cylindrical cells in R&D laboratories.

Model	Battery Welding Machine AOT-USW-3000W
Type	Ultrasonic spot welding machine
Power source	AC110/ 220V 50Hz/60Hz
Frequency	24KHZ
Max output power	3000W
Humidity	Less than 48%
Temperature	Less than 45 degree centigrade
Air supply	More than0.5MPa
Control mode	CPU control
Welding ability	1.10-30sheets 0.09-0.012mm Cu foil + 0.1-0.3mm Ni or Ni-Coated copper tab welding. Welding point : 46, 48, 410, 412 mm customized
	2. 10-30 sheets 0.09-0.012mm aluminum foil + 0.1-0.3mm Al tab welding. Welding point : 46, 48, 410, 412 mm customized
	3. 0.2mm Al belt +0.2mm Ni belt or Nickel-clad copper wrapping welding. Welding point : 46, 48, 410, 412mm customized
	4. 2-4 sheets 0.2mm Al tab or 2-4 sheets 0.2mm Ni tab weld. Welding point : 46, 412mm customized
Warranty	One year limited warranty with lifetime support
