LiCoO₂ (LCO) Single-Side Coated Aluminum Foil Gains Traction as Key Cathode Material for Next-Generation Lithium-Ion Battery Research

Global demand for high-performance battery materials continues to surge as the lithium-ion battery market races toward an estimated USD 7.0–9.2 billion by 2035–2036

As lithium-ion battery technology advances at an unprecedented pace,LiCoO₂ (LCO) single-side coated Aluminum Foil has emerged as a fundamental cathode material driving innovation in battery research and development. This specialized electrode material, featuring a uniform layer of lithium cobalt oxide applied to one side of high-purity aluminum foil, is becoming increasingly indispensable for academic research, industrial prototyping, and next-generation battery applications.

A Proven Cathode Material with Enduring Relevance

Lithium cobalt oxide (LCO, LiCoO₂) was first discovered as an intercalation electrode material by John B. Goodenough's research group in 1980 and has since become the cornerstone cathode material for rechargeable lithium-ion batteries, particularly in consumer electronics. The material is prized for its high energy density, stable voltage profile, and long cycle life.

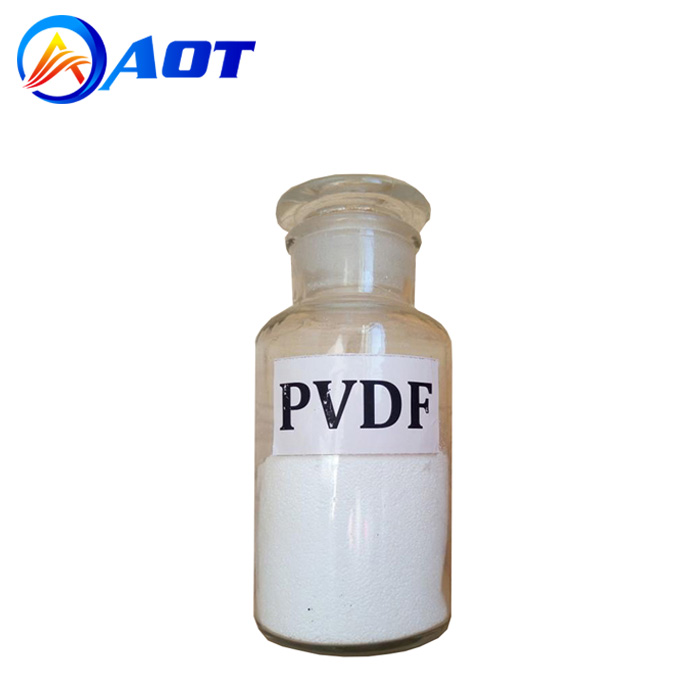

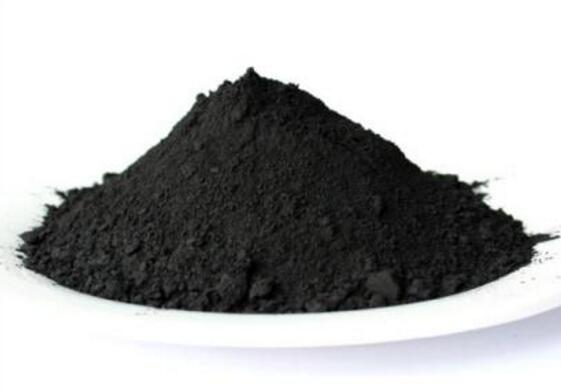

LCO single-side coated aluminum foil is manufactured through a precise process in which LiCoO₂ powder is dispersed with conductive carbon additives such as Super P and a binder like PVDF (polyvinylidene fluoride) in a solvent such as N-methyl-2-pyrrolidone (NMP) to form a uniform slurry. This slurry is then applied to one side of high-purity aluminum foil using techniques such as doctor blade or roll-to-roll coating. Following drying and calendaring, the foil exhibits a smooth, dense electrode layer with strong adhesion and consistent electrochemical properties.

Technical Specifications and Performance Metrics

Leading suppliers, including Stanford Advanced Materials, MSE Supplies, Xnergy Materials, and MTI Corporation, offer LCO single-side coated aluminum foil with a range of specifications tailored to diverse research and development needs.

Typical specifications include an aluminum foil substrate thickness of approximately 16 μm with a purity of ≥99.5%, a total thickness ranging from 50 to 70 μm, and a coating areal density of 11.5 ± 0.2 mg/cm². The active material mass ratio typically reaches 96%, with specific capacities of 158–180 mAh/g at 0.1C discharge rates. The coating area commonly measures 241 mm × 175 mm, with 12.5 mm uncoated edges on both sides for tab formation.

The aluminum foil substrate serves as a lightweight, conductive current collector that provides mechanical support and excellent electrical contact. LCO's voltage range of 3.0–4.5 V and compaction density of 3.5 ± 0.1 g/cm³ further enhance its suitability for demanding battery applications.

Diverse Applications Spanning Research and Industry

The versatility of LCO single-side coated aluminum foil makes it ideal for a wide spectrum of applications:

Lithium-Ion Coin Cell Assembly: Used as a cathode material in CR2032 and other coin cells for lab-scale testing

Battery Research and Development: Ideal for evaluating cathode performance, cycle life, and voltage profiles in academic and industrial R&D settings

Consumer Electronics Prototyping: Applicable in developing compact batteries for smartphones, tablets, and laptops

Wearable Devices: Supports small, lightweight battery designs for fitness trackers, medical sensors, and smartwatches

Reference Electrode Material: Serves as a benchmark for testing new battery materials in electrochemical studies

Educational and Training Kits: Utilized in university labs and training programs to demonstrate lithium-ion battery assembly and behavior

While primarily suited for coin cell fabrication, the single-side coated configuration offers distinct advantages in research applications where cost considerations, process efficiency, and lower defect rates are paramount.

Market Outlook and Growth Trajectory

The broader carbon-coated aluminum foil market—of which LCO single-side coated foil is a key segment—is experiencing robust growth, driven by expanding electric vehicle battery manufacturing worldwide. According to recent market analyses, the global carbon coated aluminum foil market was valued at approximately USD 2.6 billion in 2025 and is projected to reach USD 6.2 billion by 2033, growing at a compound annual growth rate (CAGR) of 11.5%. Some forecasts project the market could reach USD 8.94 billion by 2036, with a CAGR of 11.1%.

Single-side coated foil currently holds a dominant market share of approximately 51.1%, with single-side coated products expected to register the fastest CAGR of 18.6% during 2026–2036. This growth is propelled by the material's process efficiency, adequate electrochemical performance, and cost-effectiveness for research and prototyping applications.

Commitment to Quality and Innovation

Leading manufacturers maintain rigorous quality control standards to ensure each product meets international standards. Products are typically packaged in customized cartons of various sizes, with small items securely packed in PP boxes and larger items placed in custom wooden crates with appropriate cushioning materials for optimal protection during transit.

As the lithium-ion battery industry continues to evolve, LCO single-side coated aluminum foil remains a critical enabling material for next-generation energy storage technologies, bridging the gap between fundamental research and commercial battery applications.
